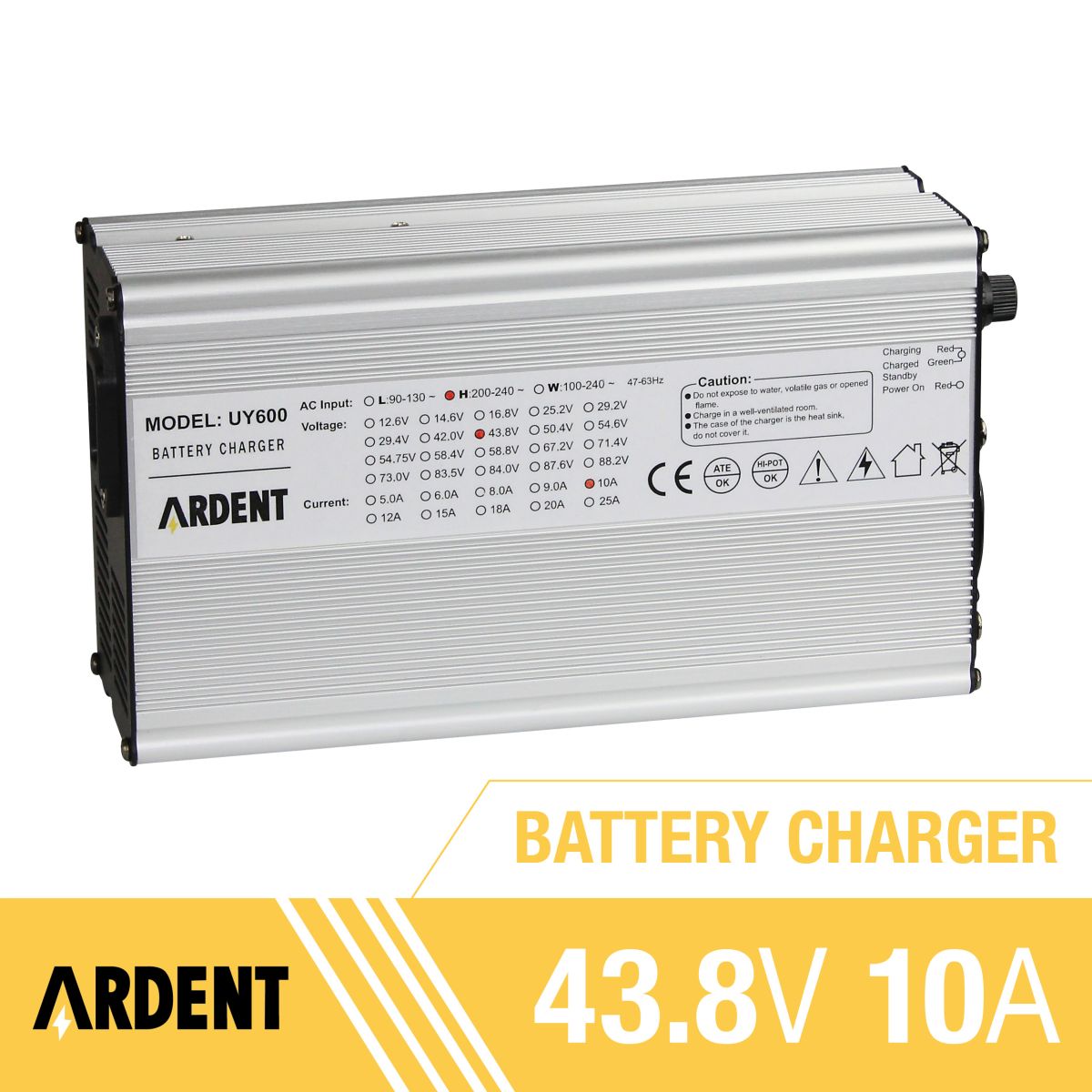

Ardent 43.8V 10A Lithium Battery Charger for 36V Lithium Battery

SKU: BC-ARDENT-36V-10A
$299.00
Limited availability, please phone us on 1800 853 315
Free delivery Australia wide!

Buy now, pay later

Interest free instalments

Four equal payments of $74.75/fortnight, with instant approval online. Learn more

Overview


Ardent 43.8V 10A Lithium Battery Charger for 36V Lithium Battery Systems with Anderson Plug & Alligator Clip cables and connections with FREE SHIPPING Australia Wide.

ARDENT Lithium Iron Phosphate (LiFePO4) battery chargers are light and compact state-of-the-art battery chargers with a charging profile specifically designed to charge and maintain Lithium Iron Phosphate (LiFePO4) batteries, and can safely achieve a 100% State of Charge.This 36V 10A model charger operates from mains AC 200-260V as input, supplying up to 10A charging output suitable for nominal 36V LiFePO4 battery banks. The charger's built-in three stage lithium charging technology provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity.

ARDENT 43.8V 10A model Lithium Battery Chargers are optimized for use with lithium iron phosphate batteries (LiFePO4). Rated at 10amps this is the perfect size for any 36V lithium battery setup. Lithium batteries benefit best from being charged using a LiFePO4 compatible battery charger and this product uses three-stage charging mode-constant current, constant voltage, trickle (or floating charge).

Ardent 43.8Volt - 10A Lithium ​LiFePO4 Battery Charger for 36Volt Battery Systems

ARDENT Lithium Iron Phosphate (LiFePO4) battery chargers have a built-in Protection System to prevent damage to the charger from almost any external accidental occurrence that would normally cause damage. The internal Protection System will automatically disconnect to prevent damage to the charger, and will automatically reconnect when the error condition has been resolved.

  • - Water, dust and chemical resistant
  • - Potential recovery of fully discharged ‘dead’ batteries
  • - Automatic power supply function
  • - Severe cold performance: down to -30°C
  • - Several other battery life enhancing features
  • - Temperature compensated charging

36V 10A - LITHIUM BATTERY SPECIFIC CHARGER

  • Connect to your lithium battery with ease
  • The charger comes with both crocodile clips and M8 eyelets - with Anderson Plugs making it easy to connect to the battery.
  • Suitable for Battery Voltage: 36Volt
  • Output voltage: 43.8V (For Lithium Batteries)
  • Output current: 10A

Ardent 14.6V 12V 20AMP Lithium Battery Charger with Anderson Plug & Alligator Clip

LITHIUM SPECIFIC BATTERY CHARGER - 43.8V 10A MODEL

Ardent Lithium Battery Chargers provide protection from short circuit, over-voltage, over temperature and reverse polarity.

ARDENT LITHIUM 36V 10A BATTERY THREE STAGE CHARGER

  • Pre-charge 1 – This stage is active only if the battery is severely discharged and helps to protect and recondition the cells against damage.
  • Pre-charge 2 – Soft start, moderate charging at the beginning to prevent the peak current damaging the cells.
  • Bulk Charging – Maximum current, the current is fixed according maximum capability of the charger.
  • Absorption – Charging with declining current to maximise the battery capacity.
  • Analysis – Determines the battery charge status and the battery saturation.
  • Power-off mode – Shuts down voltage and current when charging is complete. This avoids overcharging and variations in battery voltage caused by trickle current after charging.

PERFECT FOR USE IN A RANGE OF APPLICATIONS:

A SIMPLE SOLUTION - A CHARGER FOR ALL APPLICATIONS ADVANCED TECHNOLOGY

We're here to help!
Freecall 1800 853 315

Ardent 43.8V 10A Lithium Battery Charger

Ardent 36V 10A Lithium Battery Charger & Cables

Features a trickle charge mode that will protect the battery. This will increase battery validity and performance. It also prevents your lithium battery from over charging with three-stage charging mode-constant current, constant voltage, trickle (or float charge).

The 36V 20A model charger operates from mains AC 200-260V as input, supplying up to 10A charging output suitable for nominal 36V LiFePO4 battery banks.

Battery charging is when you are requiring to recharge a flat or dead battery to full. Battery maintenance on the other hand is when you just want to keep a battery topped up. For instance, if you're storing a classic car that you only drive a few times a month but want to ensure it's ready to go on a sunny afternoon you would require battery maintenance as opposed to battery charging. This is often referred to as trickle charging a battery. All ARDENT lithium battery chargers perform both functions.

– Automatic low voltage, battery recovery mode

– Advanced high frequency switch mode technology

– DC output isolated from AC input

– Universal Input 110-240VAC 50-60Hz

– Efficiency > 95%

– Fan forced ventilation

– 100% full load burn in tested

– Anodized aluminium enclosure

– 2 Year Replacment Warranty

FAST CHARGING - ENERGY SAVING - DURABLE

ARDENT lithium battery chargers are based on a CV/CC (constant voltage/constant current) charge algorithm. The charger limits the amount of current to a pre-set level until the battery reaches a pre-set voltage level. The current then reduces as the battery becomes fully charged. This system allows fast charging without the risk of over-charging and is suitable for Lithium Iron and other battery types. Ultimately, using an ARDENT battery charger with a specific Lithium charge algorithm is the best option for maximum performance and lifespan of any lithium battery.

● The indicator of LED: Red is charging, green is charge finished or prepare charging

● Stable, High-Efficiency, Safe,

● Precise limit of voltage & current protection

Protection System Features:

  • Over Voltage Protection - When the charger output voltage exceeds the maximum charging voltage, the charger enters a standby state. It will restore to normal working conditions automatically after troubleshooting.
  • Over Current Protection - When the charger output current exceeds the maximum charging current, the charger enters a standby state. It will restore to normal working conditions automatically after troubleshooting.
  • Short Circuit Protection - When the charger detects a short circuit at output terminals, the charger enters a short-circuit protection state. It will restore to normal working conditions automatically after troubleshooting.
  • Reverse Polarity Protection - When the charger detects that the polarity at the output terminals are reversed, the charger enters a reverse polarity protection state. It will restore to normal working conditions automatically after troubleshooting.

This Protection System is designed to last throughout the life of the charger and provide reliable charging for thousands of cycles.

EXPERT ADVICE
Freecall 1800 853 315

CLICK TO CALL >.



UPGRADE YOUR BATTERY SIZE

Get a bigger Lithium Battery Size for your Complete Portable 12V Setup.

View Now
Upgrade to Australian made Lithium


Grab a Multi-Buy Discount

Australian Made Lithium Deep Cycle Batteries & Battery Box Kits

View Now


Complete Battery and Solar eBook

If you'd like to learn more about Deep Cycle Batteries and Solar, take a look at our free Complete Battery and Solar eBook. We've covered a lot of common questions and provided a bunch of good general knowledge information to help you make informed choices when purchasing.

ALL YOU NEED TO KNOW ABOUT

  • Deep Cycle Batteries
  • Portable Solar Panels
  • Portable Fridges
  • Generators
  • Battery Chargers
  • Inverters

DOWNLOAD FREE eBOOK >

Reviews


No product reviews yet - be the first!

Write a product review

Specifications


Ardent 43.8V 10A Lithium Battery Charger for 36Volt Lithium Battery Setups

  • Output power:360W
  • DC output voltage: 43.8V 10A
  • LED indicator light logo: red and green, double color instructions, red charging green finished or standby
  • Battery Type: 36Volt Lithium
  • Output parameter - 43.8V
  • Charging current 10(A)
  • Dimensions 180x90x63mm
  • Shell material: Aluminum Shell
  • Working temperature: -5℃ ~ +40℃
  • Storage temperature: -40℃ ~ +70℃

Warranty


2 year charger warranty - 2 year full replacement warranty guaranteed from manufacturer's defects
