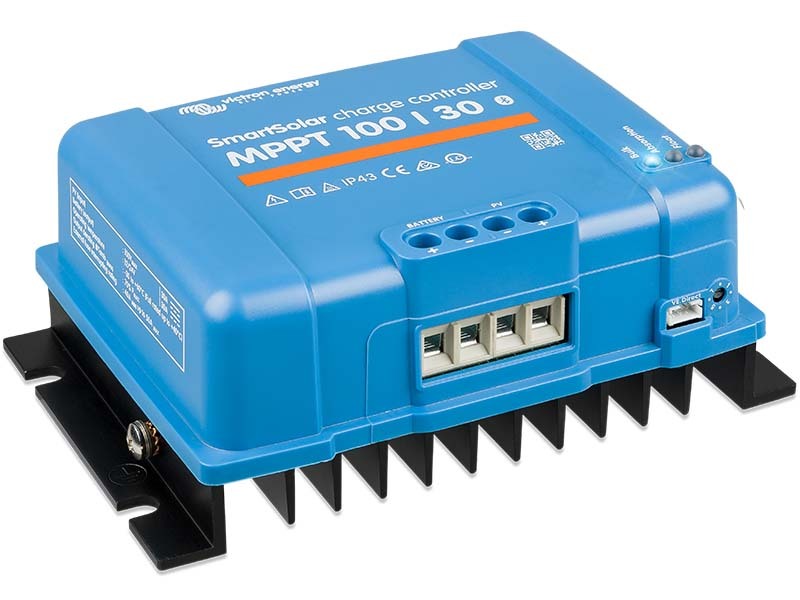

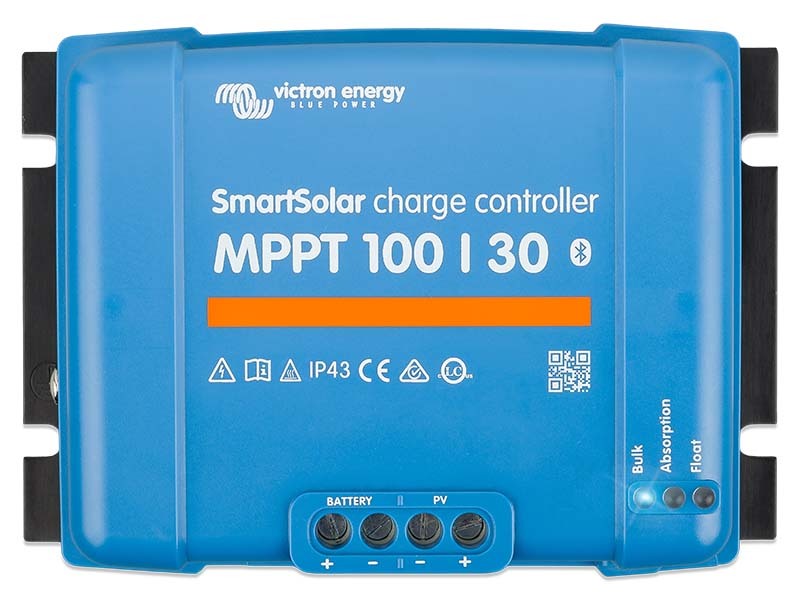

Victron Smart Solar MPPT 100/30 (SCC110030210)

SKU: Victron-SCC110030210
On sale! 6% off, save $26
$399.00 $425.00
In Stock (ready to ship)

Buy now, pay later

Interest free instalments

Four equal payments of $99.75/fortnight, with instant approval online. Learn more

Overview


Victron Smart Solar MPPT 100/30 (SCC110030210) with FREE SHIPPING  Australia Wide.

This regulator charges all 12V & 24V batteries (including lithium) and features in-built Bluetooth connectivity so you can monitor and adjust battery charging from your smartphone! A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

Controller specs:

  • Rated charge current 30A
  • Nominal PV power (12V) 440W
  • Nominal PV power (24V) 880W
  • Nominal PV power (48V) NA
  • Peak efficiency 98%
  • Automatic load disconnect Yes
  • Max PV open circuit voltage – 100V

Built-in Bluetooth along with the VictronConnect App provides easy access to the extensive range of functions available on your solar charge controller such as:

  • Solar Gauge – Realtime power output
  • Battery Voltage and State
  • Load current being drawn by appliances

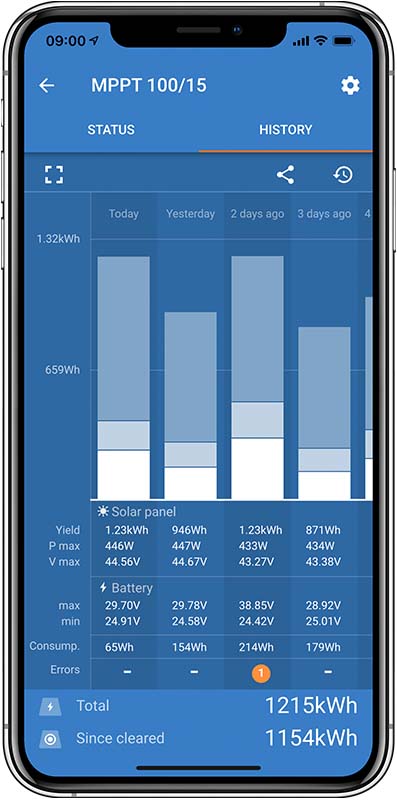

  • Battery Charge History Analysis
  • Various Settings

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

PWM and MPPT charge controllers are both widely used to charge batteries with solar power. The PWM controller is in essence a switch that connects a solar array to the battery. The result is that the voltage of the array will be pulled down to near that of the battery. The MPPT controller is more sophisticated (and more expensive): it will adjust its input voltage to harvest the maximum power from the solar array and then transform this power to supply the varying voltage requirement of the battery plus load. Thus, it essentially decouples the array and battery voltages so that there can be, for example, a 12 volt battery on one side of the MPPT charge controller and panels wired in series to produce 36 volts on the other.

It is generally accepted that MPPT will outperform PWM in a cold to temperate climate, while both controllers will show approximately the same performance in a subtropical to tropical climate. Besides performing the function of a basic controller, an MPPT controller also includes a DC to DC voltage converter, converting the voltage of the array to that required by the batteries, with very little loss of power.

An MPPT controller attempts to harvest power from the array near its Maximum Power Point, whilst supplying the varying voltage requirements of the battery plus load. Thus, it essentially decouples the array and battery voltages, so that there can be a 12 volt battery on one side of the MPPT charge controller and two 12V panels wired in series to produce 36 volts on the other. If connected to a PV array with a substantially higher nominal voltage than the battery voltage, an MPPT controller will therefore provide charge current even at very high cell temperatures or in low irradiance conditions when a PWM controller would not help much.

As your solar array size increases, both cabling cross sectional area and cable length will increase. The option to wire more panels in series and thereby decrease current, is a compelling reason to install an MPPT controller as soon as the array power exceeds a few hundred Watts (12 V battery), or several 100 Watts (24 V or 48 V battery).

VICTRON SMARTSOLAR MPPT REGULATOR 12/24V 100V/30A • BUILT IN BLUETOOTH FOR EASE OF PROGRAMMING & MONITORING • 5 YEAR WARRANTY

Ultra fast Maximum Power Point Tracking (MPPT): Especially in case of a clouded sky, when light intensity is changing continuously, an ultra fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers. In the event of partial shading, the innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

LEARN MORE: MPPT 100/30, the first number is the maximum PV open circuit voltage. The second number, 30, is the maximum charge current. Use the Victron MPPT Excel sheet or Online MPPT Calculator for PV sizing calculations. For more information about PWM or MPPT charge controllers, read the Victron whitepaper: which solar charge controller: PWM or MPPT?

Programming, real-time data and history display options- Modern Apple and Android smartphones, tablets, macbooks and other devices: DOWNLOAD PRODUCT MANUAL

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing..

Developed for professional results, the MPPT is suitable for a wide range of applications.

  • Superior Performance & Efficiency
  • World Renowned High Quality
  • 5 Year Manufacturer Warranty

Remote Monitoring and Control
Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by bluetooth-pairing with a LoRaWAN (long-range wide area network) device, available optionally.

MPPT controllers operate solar panels at their Maximum Power Point improving efficiency up to 30% by adjusting input voltage to harvest the maximum power from the solar panels. It then manages this power to supply the varying voltage requirement of the battery plus load. The MPPT senses when to adjust the output that it is being sent to the battery and will shut down for a few microseconds, calculate and make relevant adjustments. The principle of MPPT is to extract the maximum possible power from a solar panel by setting the most efficient combination of voltage and current - maximum power point.

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

PERFECT FOR USE IN A RANGE OF APPLICATIONS:

Victron SmartSolar 100 VOC, 30 Amp MPPT solar panel charge controller for 12V and 24V battery systems (including Lithium) with Bluetooth.

Built-in Bluetooth along with the VictronConnect App provides easy access to the extensive range of functions available on your solar charge controller such as:

We're here to help!
Freecall 1800 853 315

The MPPT is a highly advanced controller and features:

Ultra-fast Maximum Power Point Tracking – In a clouded sky where light intensity is changing constantly, the MPPT controller will harvest energy 30% more efficient than the PWM controller

Intelligent Battery Management – The controller will monitor the state of charge and if needed, day by day slightly increase the load disconnect level until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%

Bluetooth Smart Built-In – This wireless solution allows you to monitor, set up, update and sychonise Smart Solar Charge Controllers

VE Direct Connectivity – A wired data connection to a Colour Control GX, and other GX, PC or other devices can be made.

EXPERT ADVICE
Freecall 1800 853 315

CLICK TO CALL >
Battery Charger

Victron SmartSolar 100 VOC, 30 Amp MPPT solar panel charge controller for 12V and 24V battery systems (including Lithium) with Bluetooth.

MPPT controllers operate solar panels at their Maximum Power Point improving efficiency up to 30% by adjusting input voltage to harvest the maximum power from the solar panels. It then manages this power to supply the varying voltage requirement of the battery plus load.The MPPT senses when to adjust the output that it is being sent to the battery and will shut down for a few microseconds, calculate and make relevant adjustments. The principle of MPPT is to extract the maximum possible power from a solar panel by setting the most efficient combination of voltage and current - maximum power point.

The Victron MPPT SmartSolar support Advanced Maximum Power Point Detection. Unlike the conventional MPPTs which tend to lock to a local MPP when shady conditions occur, [which may not be the optimum MPP], Advance Maximum Power Point Detection will harvest maximin energy by locking to the optimum MPP.

Internal temperature sensor provides additional electronic protection

  • Over-temperature protection and power derating when temperature is high.
  • PV short circuit and PV reverse polarity protection.
  • PV reverse current protection.

Other features:

  • With no cooling fan the maximum efficiency exceeds 98%.
  • Flexible charge algorithm provides functionality for fully programmable charge algorithm, and eight preprogrammed algorithms, selectable with a rotary switch

Other Features:

  • IP43 rated charger casing and resin encapsulated electronics offers all vital components exceptional protection from the environment
  • Programmable battery charge algorithm allows you to tailor the chargers output to your specific requirements
  • Internal temperature sensor compensates absorption and float charge voltage for temperature to ensure optimal efficiency
  • Fully discharged battery recovery function will initiate charging even if the battery has been discharged to zero volts
  • Optional external battery voltage and temperature sensing via Bluetooth using a Smart Battery Sense or a BMV-712 Smart Battery Monitor

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

  • Bluetooth Smart built-in

    The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

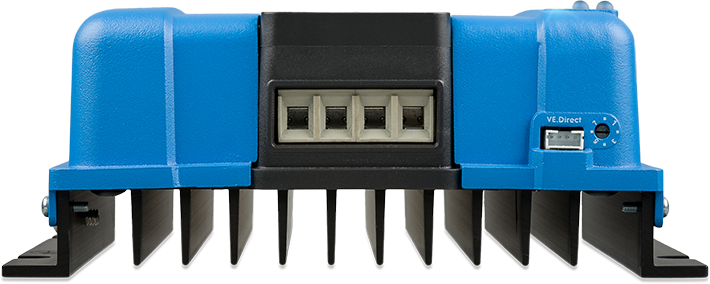

  • VE.Direct

    For a wired data connection to a Color Control GX, other GX products, PC or other devices

  • Ultra-fast Maximum Power Point Tracking (MPPT)

    Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

  • Load output

    Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage (48V model: interface with a relay).

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Load output: Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output  will disconnect the load when the battery has been discharged to a preset voltage. Alternatively, an intelligent battery management algorithm can be chosen. The load output is short circuit proof, but  some loads (especially inverters) are best connected directly to the battery, with the inverter remote control connected to and triggered by the load output. A special interface cable may be required for this method; please refer to the manual.

Battery Life Intelligent Battery Management: When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will be continually be cycled between a partially charged state and the end of discharge state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The BatteryLife algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is  sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level  will be modulated so that a nearly 100% recharge is achieved about once every week.

This regulator charges all 12V and 24V batteries (including lithium) and features in-built Bluetooth connectivity so you can monitor and adjust battery charging from your smartphone!

WATCH OUR VIDEOS TO LEARN MORE >

WATCH MORE >




UPGRADE: COMPLETE BATTERY BOX KIT

Get the Bestselling 140AH AGM Heavy Duty Battery Box Combo for a Complete Portable 12V Setup.

View Now


Grab a Multi-Buy Discount

Get 2 x Giant Power 140AH Deep Cycle Batteries and FREE Cables.  Buy a Second 140AH Battery & Get FREE CABLES RRP $30

View Now


Complete Battery and Solar eBook

If you'd like to learn more about Deep Cycle Batteries and Solar, take a look at our free Complete Battery and Solar eBook. We've covered a lot of common questions and provided a bunch of good general knowledge information to help you make informed choices when purchasing.

ALL YOU NEED TO KNOW ABOUT

  • Deep Cycle Batteries
  • Portable Solar Panels
  • Portable Fridges
  • Generators
  • Battery Chargers
  • Inverters

DOWNLOAD FREE eBOOK >

Reviews


No product reviews yet - be the first!

Write a product review

Specifications


SmartSolar Charge Controller

MPPT 100/30

MPPT 100/50

Battery voltage

12/24V Auto Select

Rated charge current

30A

50A

Nominal PV power, 12V 1a,b)

440W

700W

Nominal PV power, 24V 1a,b)

880W

1400W

Maximum PV open circuit voltage

100V

100V

Max. PV short circuit current 2)

35A

60A

Maximum efficiency

98%

98%

Self-consumption

12V: 30 mA 24V: 20 mA

Charge voltage 'absorption'

Default setting: 14,4V / 28,8V (adjustable)

Charge voltage 'float'

Default setting: 13,8V / 27,6V (adjustable)

Charge algorithm

multi-stage adaptive

Temperature compensation

-16 mV / °C resp. -32 mV / °C



Protection

Battery reverse polarity (fuse, not user accessible) PV reverse polarity

Output  short circuit

Over temperature

Operating temperature

-30 to +60°C (full rated output up to 40°C)

Humidity

95%, non-condensing

Data communication port

VE.Direct

See the data communication white paper on our website

ENCLOSURE

Colour

Blue (RAL 5012)

Power terminals

16 mm² / AWG6

Protection category

IP43 (electronic components), IP22 (connection area)

Weight

1,3 kg

Dimensions (h x w x d)

130 x 186 x 70 mm

STANDARDS

Safety

EN/IEC 62109-1, UL 1741, CSA C22.2

1a) If more PV power is connected, the controller will limit input power. 1b) The PV voltage must exceed Vbat + 5V for the controller to start.

Thereafter the minimum PV voltage is Vbat + 1V.

2) A PV array with a higher short circuit current may damage the controller.
