Ardent 12V 20AMP Lithium Battery Charger for 12V LiFEPO4

SKU: BC-ARDENT-12V-20A
On sale! 17% off, save $50
$249.00 $299.00
In Stock (ready to ship)
Free Delivery Australia Wide!

Buy now, pay later

Interest free instalments

Four equal payments of $62.25/fortnight, with instant approval online. Learn more

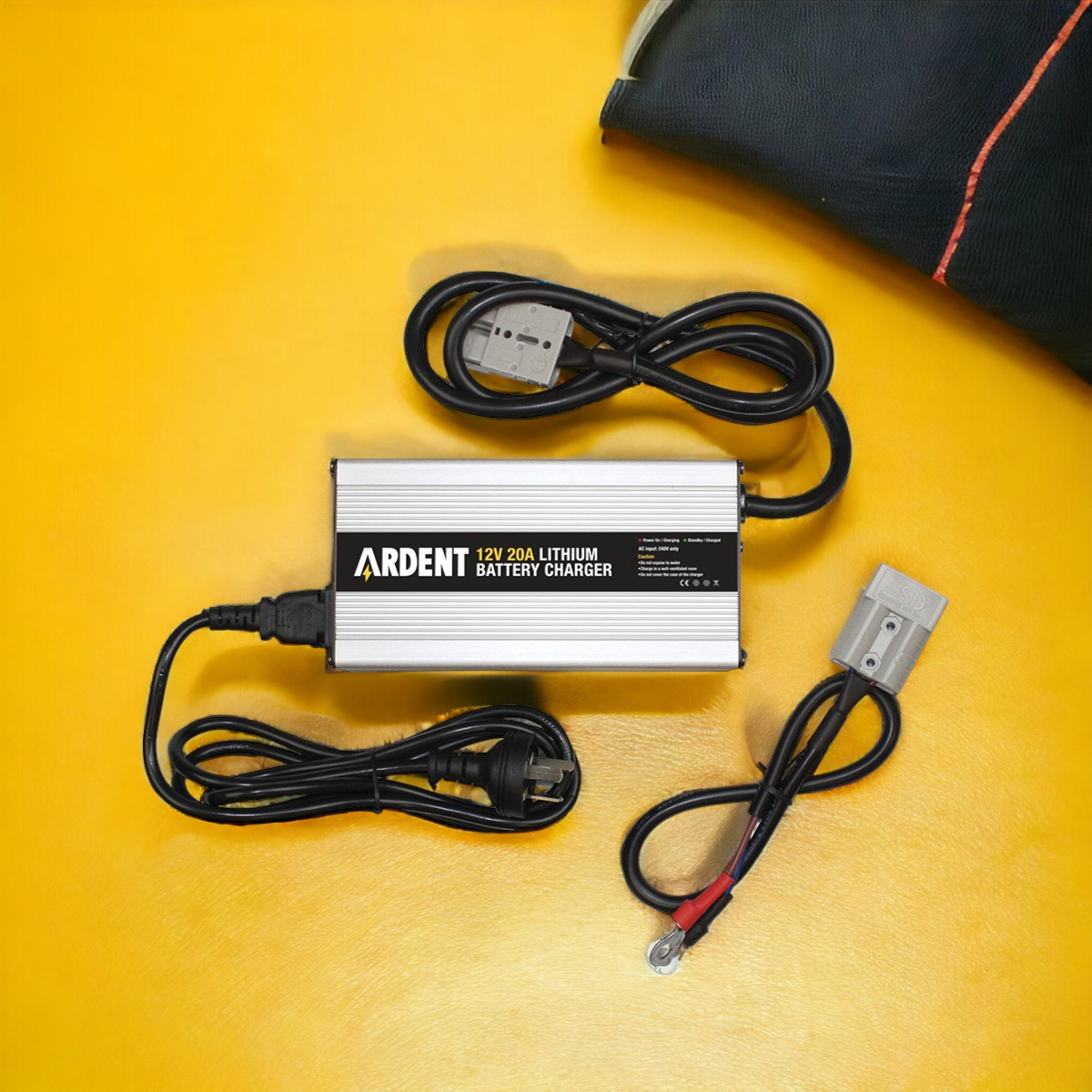

Ardent 12V 20AMP Lithium Battery Charger with Cables

Free Shipping Australia Wide

Don't Get Caught Unprepared: Why You Need this 20A Lithium Charger

ARDENT Lithium (LiFePO4) battery chargers are light and compact state-of-the-art battery chargers with a charging profile specifically designed to charge and maintain Lithium (LiFePO4) batteries, and can safely achieve a 100% State of Charge. This 12V 20A model lithium battery charger operates from mains power AC 200-264V as input, supplying up to a 20A charging output suitable for nominal 12V LiFePO4 batteries. The charger's built-in protection technology provides protection against Over Voltage and Over Current output, Short Circuit and Reverse Polarity. For a 12V system, we really want to emphasize reaching 14.2V – 14.6V for bulk and absorption and float to be 13.6V or lower. As an example, using a 100Ah battery and a 20A charger the battery would take approx 5 hours to fully charge.

Comes with Free Shipping Australia Wide.

Ultimately, using a battery charger with a specific Lithium charge algorithm is the best option for maximum performance and lifespan of any lithium battery. Using any other charger can cause damage to the Lithium battery.

Easily Connect & Charge Your Lithium (LiFePO4) Battery

This battery charger has a wide AC input voltage range, 100-240 VAC 50/60Hz, which is compatible with various power needs. This 20A lithium charger comes with an Anderson Plug charging cable which is designed to allows users to quickly establish the connection between the battery and the charger.

  • The charger comes with  M8 eyelets - with Anderson Pugs making it easy to connect to the battery.

Lithium Battery Chargers for 100Ah Lithium Battery

Ardent 12V 20A Lithium Battery Charger

ARDENT Lithium Iron Phosphate (LiFePO4) battery chargers have a built-in Protection System to prevent damage to the charger from almost any external accidental occurrence that would normally cause damage. The internal Protection System will automatically disconnect to prevent damage to the charger, and will automatically reconnect when the error condition has been resolved.

ARDENT Lithium Battery Chargers are optimized for use with lithium (LiFePO4). Rated at 20amps this is the perfect size for any 100AH or above 12V lithium battery. Lithium batteries benefit best from being charged using a LiFePO4 compatible battery charger with three-stage charging mode-constant current, constant voltage, trickle (or floating charge).

20A Lithium Battery Charger

20A Lithium Battery Charger Australia

Ardent 20A 12V Lithium Battery Charger

What is a 20AMP 12V Lithium Charger ?

This Ardent 12V 20A AC charger is designed for lithium batteries (LifePO4 Battery). The charger has a 3-stage intelligent charging design (CC/CV/trickle) to ensure it charges the lithium battery quickly and efficiently. This battery charger has 5-layer protection functions to realize comprehensive monitoring and protection of the battery. This charger is suitable for RVs, motorbikes, boats, and camper-van.

  • - Water, dust and chemical resistant
  • - Potential recovery of fully discharged ‘dead’ batteries
  • - Automatic power supply function
  • - Severe cold performance: down to -30°C
  • - Several other battery life enhancing features
  • - Temperature compensated charging

The charger’s indicator light illustrates the connected battery's operating mode and condition. Red light means that it is charging and green light reveals a full charge. This is a low noise charger, so no annoying noise while it is working.

How to Safely Use Your Battery Charger:

Connect the terminals first before turning on mains 240V power

  • Connect the negative output terminal of the charger to the negative terminal of the battery
  • Connect the positive output terminal of the charger to the positive terminal of the battery
  • Connect the AC Charger Power Adapter Cable to the AC port of the charger and turn on 240V mains power
  • NEVER turn on before you connect the lithium battery positive and negative terminals correctly
  • NEVER short circuit between this charger's positive and negative terminals

CHARGER FEATURES:

Over Voltage Protection - When the charger output voltage exceeds the maximum charging voltage, the charger enters a standby state. It will restore to normal working conditions automatically after troubleshooting.

Over Current Protection - When the charger output current exceeds the maximum charging current, the charger enters a standby state. It will restore to normal working conditions automatically after troubleshooting.

Short Circuit Protection - When the charger detects a short circuit at output terminals, the charger enters a short-circuit protection state. It will restore to normal working conditions automatically after troubleshooting.

Reverse Polarity Protection - When the charger detects that the polarity at the output terminals are reversed, the charger enters a reverse polarity protection state. It will restore to normal working conditions automatically after troubleshooting.

Ardent Lithium Battery Charger

DC-DC Charging For Lithium Batteries

Regarding DC-DC Chargers and solar controllers, you must change these to LiFePO4-specific models, which can charge your Lithium batteries to an entire 100% State of Charge.  **If you are charging from an alternator, you will need a DC-DC Charger that is designed to manage solar specific to lithium (LiFEPO4).

We're Here to Help!

For Expert Advice — CONTACT US

Lithium Battery Charger

Ardent 12V 20A Lithium Charger

Features a trickle charge mode that will protect the battery. This charger will increase lithium battery cell reliability and performance. It also prevents your lithium battery from overcharging with three-stage charging modes: constant current, constant voltage, and trickle (or float charge). This charger has a 3-stage intelligent charging design: high current (cc), constant voltage (cv), and trickle. Moreover, this Ardent LiFePO4 battery charger can balance the cells of the battery pack, which is necessary to prevent cells from draining faster than others during charging, thereby avoiding the risk of cell damage.This LiFePO4 battery charger has advanced features such as built-in temperature sensors, which allow the charger to adjust the charging current according to the battery temperature, ensuring optimum performance and prolonging the battery lifespan.

This Ardent Battery Charger can accurately identify battery voltage and automatically switch charging mode and provide fast and efficient charging for lithium batteries.

12V Lithium Battery Charger

These chargers are specifically designed to charge LiFePO4 batteries with the correct voltage, current, and charging algorithm, ensuring that the batteries are protected from overcharging and undercharging. Battery charging is when you are requiring to recharge a flat or dead battery to full. Battery maintenance on the other hand is when you just want to keep a battery topped up. For instance, if you're storing a classic car that you only drive a few times a month but want to ensure it's ready to go on a sunny afternoon you would require battery maintenance as opposed to battery charging. This is often referred to as trickle charging a battery. All ARDENT lithium battery chargers perform both functions.

Perfect for Use in a Range of Power Applications

This battery charger is designed for lithium batteries. When the lithium battery triggers the low temperature/low voltage while charging, the BMS will turn on the protection, which means the lithium battery cannot be charged and needs to be activated. This charger provides a lithium battery activation function that quickly exits the protection mode and recharges. Along with Australian CE  certification, it provides a safe and stable AC charging environment.

Power Up Your Lithium Battery with a 240V AC Lithium Charger

This battery charger has a wide AC input voltage range, 100-240 VAC 50/60Hz, which is compatible with various needs. The charger comes with an Anderson Plug charging cable cable which is designed to allows users to quickly establish the connection between the battery and the charger. ARDENT lithium battery chargers are based on a CV/CC (constant voltage/constant current) charge algorithm. The charger limits the amount of current to a pre-set level until the battery reaches a pre-set voltage level. The current then reduces as the battery becomes fully charged. This system allows fast charging without the risk of over-charging and is suitable for Lithium Iron and other battery types. Ultimately, using an ARDENT battery charger with a specific Lithium charge algorithm is the best option for maximum performance and lifespan of any lithium battery.

20A Lithium Battery Charger 12V

Lithium Battery Charger

Australian Owned & Operated

100AH Lithium Deep Cycle Battery Online Designed for Off Road and Heavy Duty Applications

Perfect for use in caravans, marine, camping and home storage off grid applications. Solar, wind or battery charger compatible. Designed to handle the vibration when off road.

100AH Lithium Deep Cycle Battery Online Reliable 12V Power

Campers appreciate being able to charge multiple devices simultaneously while enjoying a peaceful camping experience.

100AH Lithium Deep Cycle Battery Online Portable Power Solutions

Superior Versatility: This battery to battery charger is ideal for 4WDs, caravans, RVs, trucks, campers, trailers, campervans, commercial vehicles and boats.

100AH Lithium Deep Cycle Battery Online Easy to Use and Setup

This plug-and-play power system is so user-friendly that anyone can set it up. Multiple Protection: Over-charge, short circuit, over-temperature, over-voltage, solar input overload and reverse polarity protection are incorporated.

Australian Made Lithium Deep Cycle Battery Giant Power

We're Here to Help!

For Expert Advice — CONTACT US

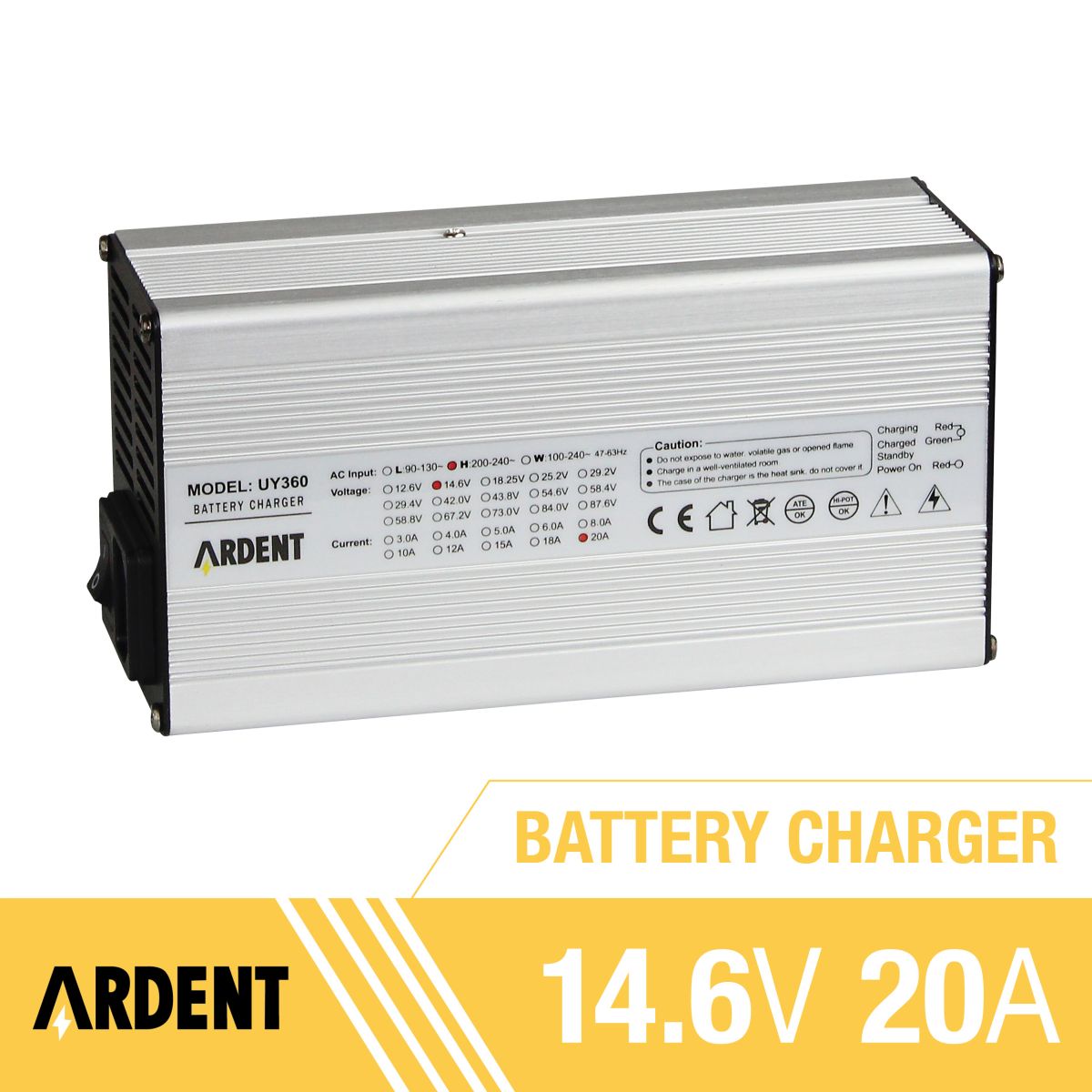

Ardent 12V 20A Lithium ​LiFePO4 Battery Charger

For a 12V system, we really want to emphasize reaching 14.2V – 14.6V for bulk and absorption and float to be 13.6V or lower.

  • Battery Type: Lithium battery
  • Output parameter - 14.6V
  • Charging current 20(A)
  • Dimensions 170×90×50 (mm)
  • Shell material: Aluminum Shell
  • Working temperature: -5℃ ~ +40℃
  • Storage temperature: -40℃ ~ +70℃

12V Deep Cycle batteries, you should set your charger profile to charge up to 14.6 volts for 30 minutes and then float charge at 13.6 volts. For a 12V system, we really want to emphasize reaching 14.2V – 14.6V for bulk and absorption and float to be 13.8V or lower.  That means a 12-volt lithium battery will boast a normal maximum voltage of 13.6 volts when fully charged. And even after discharging 10% of their nominal capacity, they still have 13.4 volts at resting voltage (a loss of only 0.2 volts). ***Note that all 12V batteries above 12Ah, configured in Series, must be charged individually with a 12V charger.

Download Operating Manual

2 year charger warranty - 2 year full replacement warranty guaranteed from manufacturer's defects

For more information, please read our full warranty policy
