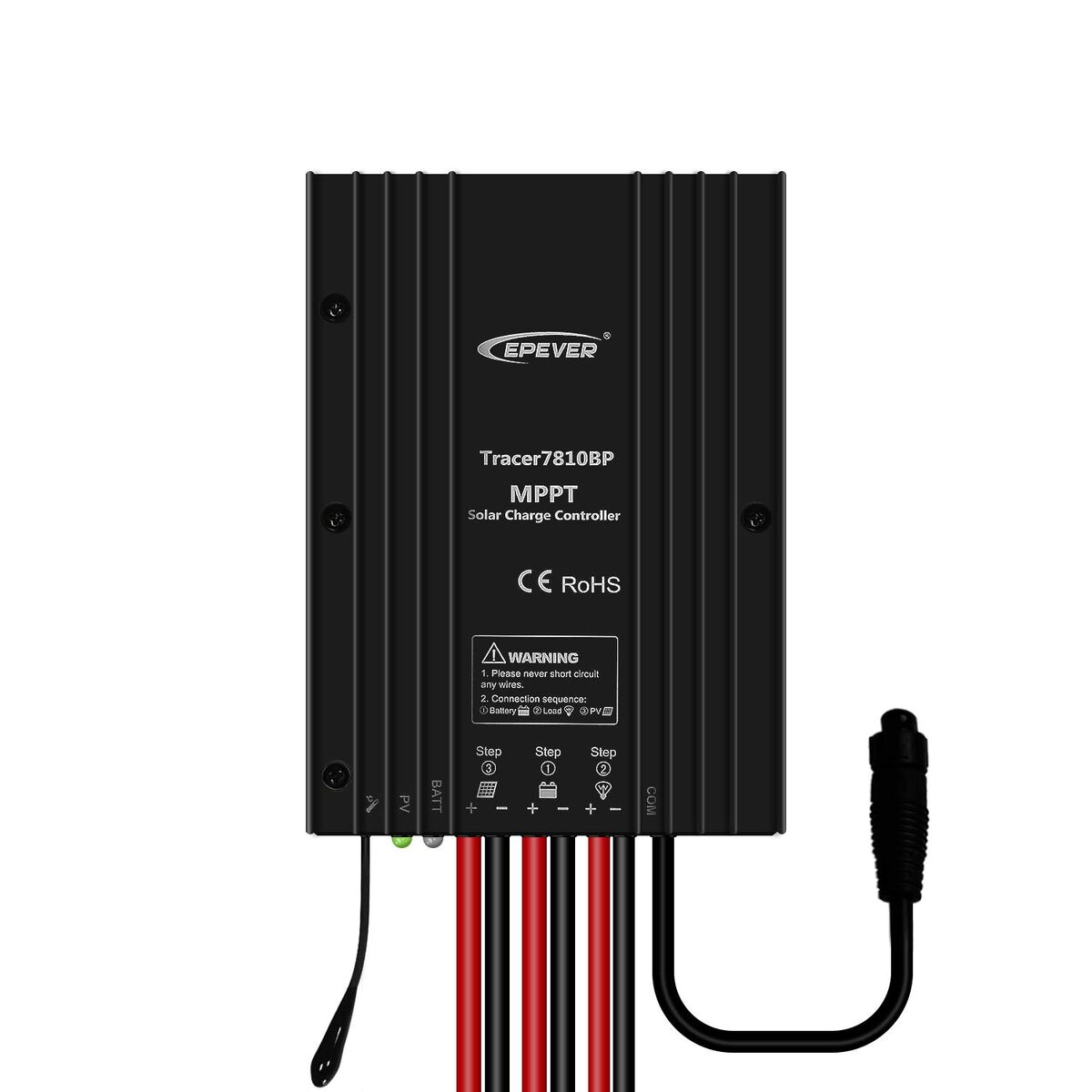

EP EVER TRACER MPPT SOLAR CHARGE CONTROLLER 30A
EPEVER Tracer-BP series MPPT charge controller with IP67 waterproof design, Upgrade based on Tracer-AN series, it supports real-time control mode and adds waterproof function, which is ideal for outdoor use.
Tracer-BP series adopts advanced maximum power point tracking charging methods which will results in up to 30% charging efficiency increase compared with the PWM charge controllers.
The RS485 interface with standard MODBUS communication protocol and 5V,150mA power supply makes it easy for the customer to expand the application.
With the accessories like WiFi module, Bluetooth adapter, IoT module, users can customize their prefered remote monitoring methods and controll the solar system via app and cloud platform.
Specification:
● Waterproof level: IP67
● Rated Charging Current: 30A
● Rated Discharging Current: 30A
● Max. PV open circuit voltage: 100V
● System Voltage: 12V/24V auto identify
● Tracking efficiency : ≥99%
● Maximum conversion efficiency: 98%
● Working temperature : -40℃～+50℃
● Temperature compensation coefficient: -3mV/℃/2V
● Battery type: Lead-acid battery, Lithium battery, User Types.
● Material: aluminum alloy
● Weight: 2.78lb

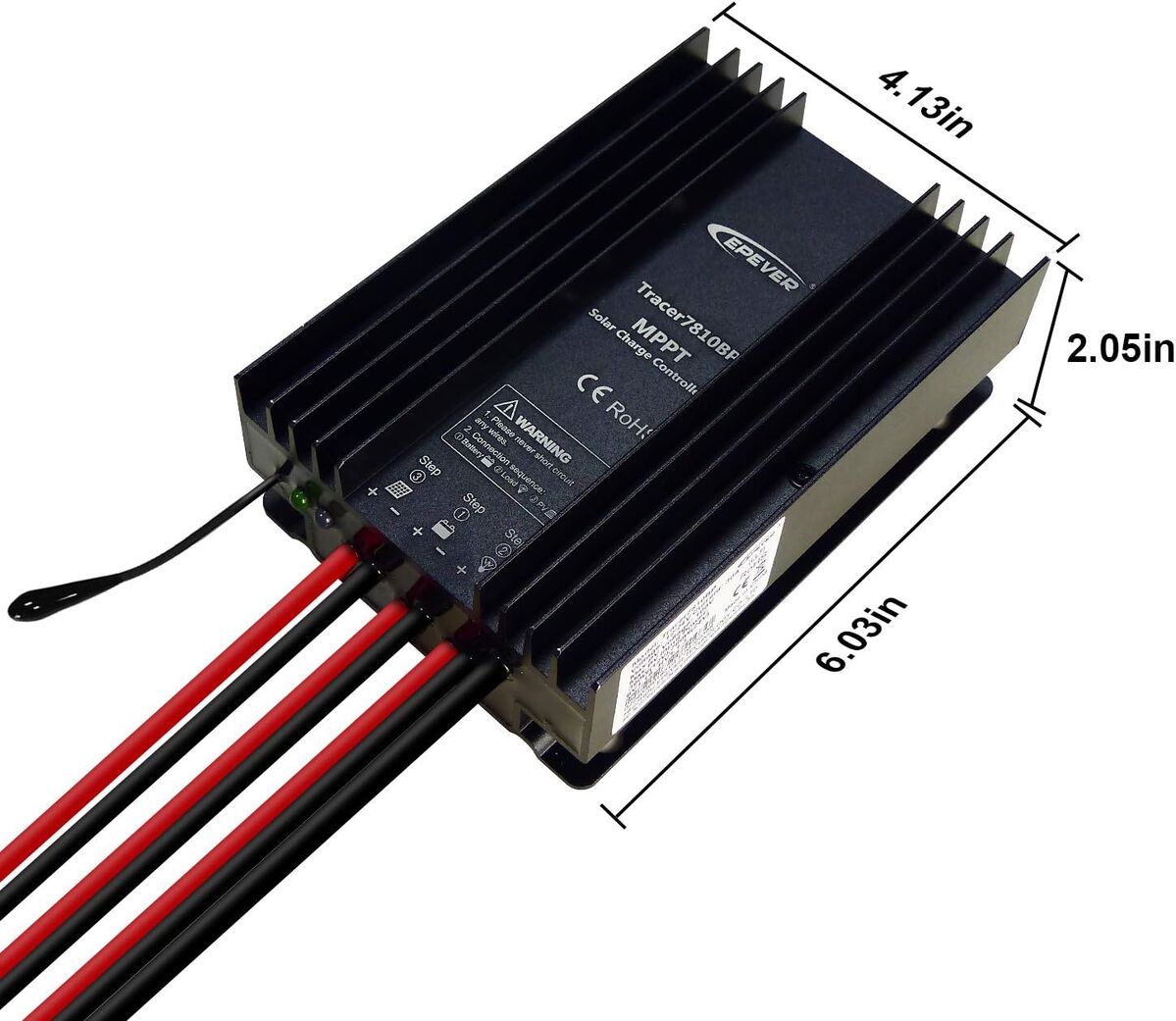

● Size: 5.9x3.9x2.1in
● Wire size: 10AWG/(6mm²)
● Model Number: Tracer7810BP
Runs perfectly with our 300W and 400W solar panels.
Package Include：
● 1 X 30A Waterproof MPPT Solar Charge Controller
● 1 X Ble-RJ45-D Bluetooth Adapter
● 1 X RS485 Communication Cable (4M12)
● 1 X User Manual
Shipping not available to AU, please try another location.
|
|
Model | Tracer5206BP |
| Battery input voltage range | 8.5~32VDC | |
| Rated charge/discharge current | 20A | |
| Rated charge power | 260W/12V;520W/24V | |
| Max. PV open circuit voltage | 60V | |
| MPP Voltage range | (Battery Voltage +2V) ~ 36V | |
| Battery Type | Lead-acid battery: Sealed(Default) / Gel / Flooded/User; Lithium battery:LiFePO4/ Li-NiCoMn/User | |
|
LEAD- ACID AGM
|
Equalize Charging Voltage | Sealed :14.6V/Gel：No / Flooded:14.8V/User:9-17V (×2/24V) |
| Boost Charging Voltage | Sealed :14.4V/Gel：14.2V/Flooded:14.6V/User:9-17V (×2/24V) | |
| Float Charging Voltage | Sealed/Gel/Flooded:13.8V/User:9-17V (×2/24V) | |
| Low Voltage Reconnect Voltage | Sealed/Gel/Flooded:12.6V/User:9-17V (×2/24V) | |
| Low Voltage Disconnect Voltage | Sealed/Gel/Flooded:11.1V/User:9-17V (×2/24V) | |
|
LITHIUM
|
Boost Charging Voltage | LiFePO4:14.5V/ Li-NiCoMn:12.5V / User:9-17V (×2/24V) |
| Low Voltage Reconnect Voltage | LiFePO4:12.8V / Li-NiCoMn:10.5V / User:9-17V (×2/24V) | |
| Low Voltage Disconnect Voltage | LiFePO4:11.1V / Li-NiCoMn:9.3V / User:9-17V (×2/24V) | |
|
|
Self-consumption | ≤13mA/12V;≤11.5mA/24V |
| Temperature compensation coefficient | -3mV/℃/2V( Lithium battery don’t have temperature compensation coefficient) | |
| Communication | RS485 | |
| Working Environment Temp | -40℃～+60℃ | |
| Enclosure | IP67 | |
| Overall Dimensions | 153×105×52.1mm | |
| Mounting Hole Size | Φ3.5mm | |
| Mounting Dimension | 88×76mm | |
| Power Cable | 14AWG(2.5mm2) | |
| Net Weight | 1.25kg |
EPEVER Tracer-BP series MPPT charge controller with IP67 waterproof design, Upgrade based on Tracer-AN series, it supports real-time control mode and adds waterproof function, which is ideal for outdoor use.
Tracer-BP series adopts advanced maximum power point tracking charging methods which will results in up to 30% charging efficiency increase compared with the PWM charge controllers.
The RS485 interface with standard MODBUS communication protocol and 5V,150mA power supply makes it easy for the customer to expand the application.
With the accessories like WiFi module, Bluetooth adapter, IoT module, users can customize their prefered remote monitoring methods and controll the solar system via app and cloud platform.
Specification:
● Waterproof level: IP67
● Rated Charging Current: 30A
● Rated Discharging Current: 30A
● Max. PV open circuit voltage: 100V
● System Voltage: 12V/24V auto identify
● Tracking efficiency : ≥99%
● Maximum conversion efficiency: 98%
● Working temperature : -40℃～+50℃
● Temperature compensation coefficient: -3mV/℃/2V
● Battery type: Lead-acid battery, Lithium battery, User Types.
● Material: aluminum alloy
● Weight: 2.78lb
● Size: 5.9x3.9x2.1in
● Wire size: 10AWG/(6mm²)
● Model Number: Tracer7810BP
Runs perfectly with our 300W and 400W solar panels.
Package Include：
● 1 X 30A Waterproof MPPT Solar Charge Controller
● 1 X Ble-RJ45-D Bluetooth Adapter
● 1 X RS485 Communication Cable (4M12)
● 1 X User Manual
|
|
Model | Tracer5206BP |
| Battery input voltage range | 8.5~32VDC | |
| Rated charge/discharge current | 20A | |
| Rated charge power | 260W/12V;520W/24V | |
| Max. PV open circuit voltage | 60V | |
| MPP Voltage range | (Battery Voltage +2V) ~ 36V | |
| Battery Type | Lead-acid battery: Sealed(Default) / Gel / Flooded/User; Lithium battery:LiFePO4/ Li-NiCoMn/User | |
|
LEAD- ACID AGM
|
Equalize Charging Voltage | Sealed :14.6V/Gel：No / Flooded:14.8V/User:9-17V (×2/24V) |
| Boost Charging Voltage | Sealed :14.4V/Gel：14.2V/Flooded:14.6V/User:9-17V (×2/24V) | |
| Float Charging Voltage | Sealed/Gel/Flooded:13.8V/User:9-17V (×2/24V) | |
| Low Voltage Reconnect Voltage | Sealed/Gel/Flooded:12.6V/User:9-17V (×2/24V) | |
| Low Voltage Disconnect Voltage | Sealed/Gel/Flooded:11.1V/User:9-17V (×2/24V) | |
|
LITHIUM
|
Boost Charging Voltage | LiFePO4:14.5V/ Li-NiCoMn:12.5V / User:9-17V (×2/24V) |
| Low Voltage Reconnect Voltage | LiFePO4:12.8V / Li-NiCoMn:10.5V / User:9-17V (×2/24V) | |
| Low Voltage Disconnect Voltage | LiFePO4:11.1V / Li-NiCoMn:9.3V / User:9-17V (×2/24V) | |
|
|
Self-consumption | ≤13mA/12V;≤11.5mA/24V |
| Temperature compensation coefficient | -3mV/℃/2V( Lithium battery don’t have temperature compensation coefficient) | |
| Communication | RS485 | |
| Working Environment Temp | -40℃～+60℃ | |
| Enclosure | IP67 | |
| Overall Dimensions | 153×105×52.1mm | |
| Mounting Hole Size | Φ3.5mm | |
| Mounting Dimension | 88×76mm | |
| Power Cable | 14AWG(2.5mm2) | |
| Net Weight | 1.25kg |
| SKU | 7810BP |
| Brand | EPSolar |
| Shipping Weight | 0.7500kg |
| Shipping Width | 0.120m |
| Shipping Height | 0.080m |
| Shipping Length | 0.180m |
| Shipping Cubic | 0.001728000m3 |
| Assembled Length | 0.156m |
| Assembled Height | 0.068m |
| Assembled Width | 0.097m |
