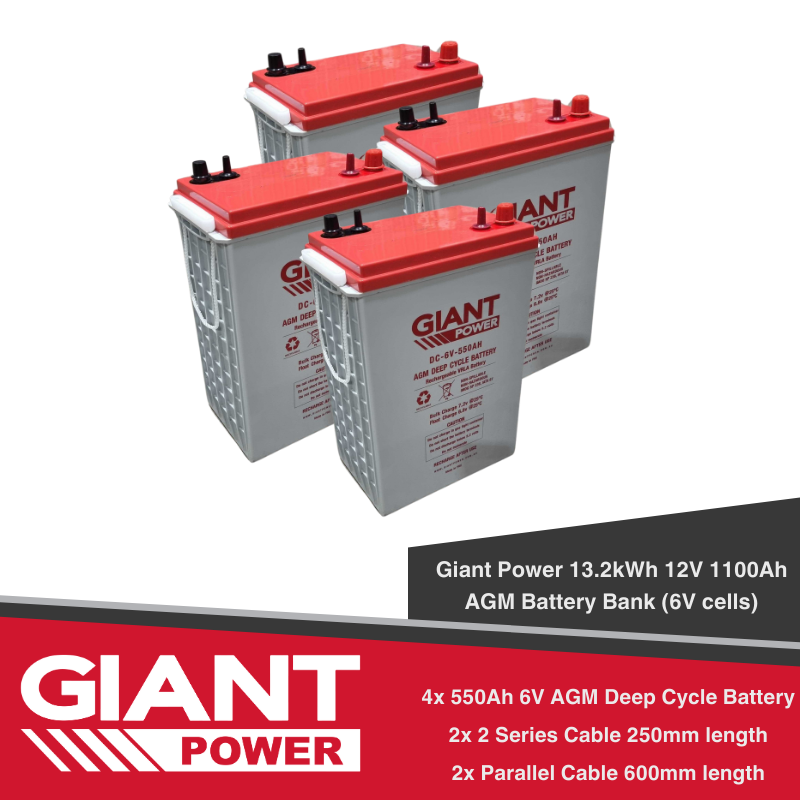

13.2kWh 12V 1100AH AGM Battery Bank (6V cells)

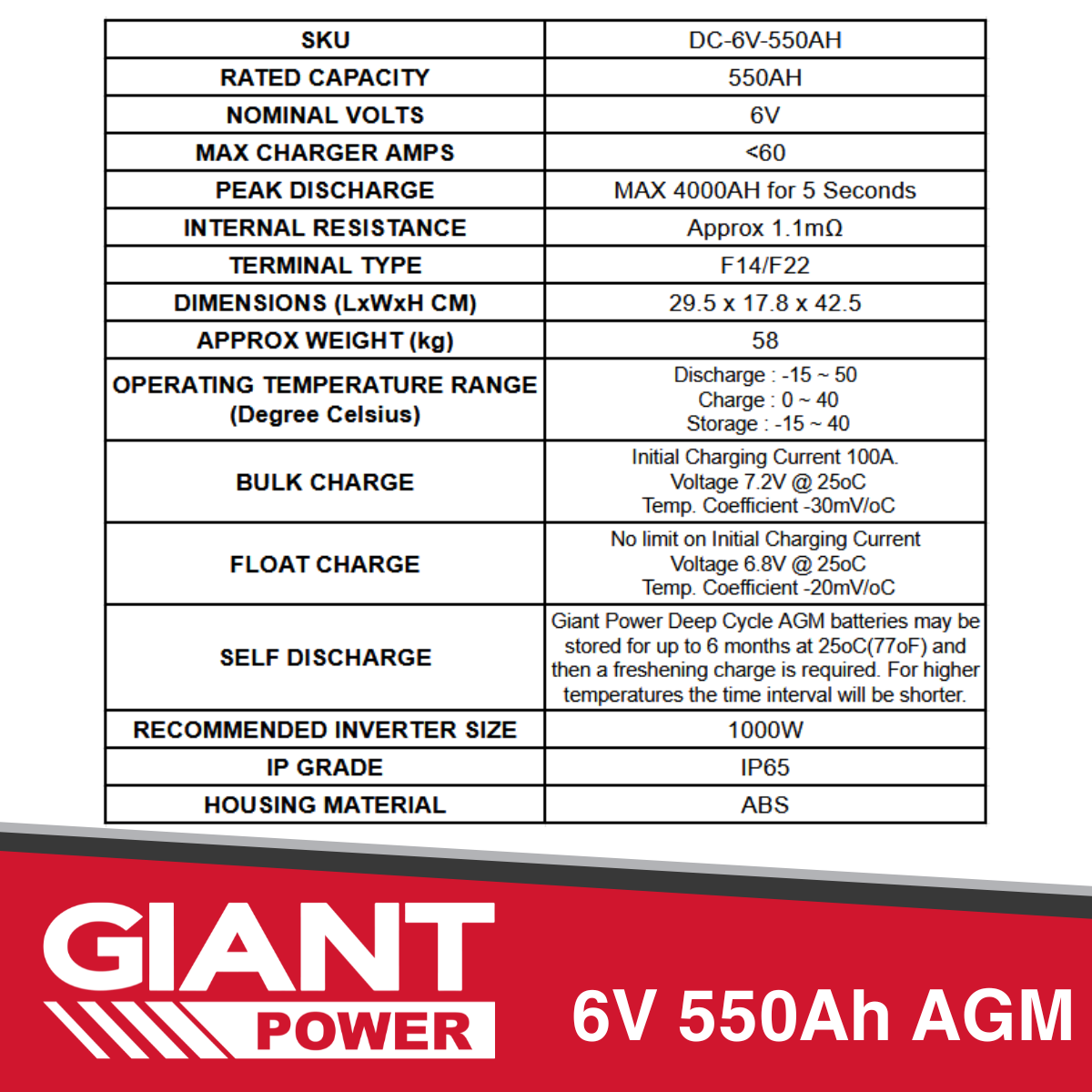

Giant Power 6V 550AH AGM Deep Cycle Battery
Cells Per Unit	3
Voltage Per Unit	6
Nominal Capacity	550Ah@C100 to 1.75V per cell @25ºC
Dimension	Length: 295 ±2mm Width: 178 ±2mm Total Height (with Terminal): 425 ±2mm
Approx Weight	Approx 57.5 Kg (Tolerance ± 1.5%)
Max Discharge Current	4000A (5 Sec)
Internal Resistance	Approx 1.1mΩ
Operating Temp.Range	Discharge : -20 ~ 60^oC Charge : 0 ~ 50^oC Storage : -20 ~ 60^oC
Nominal Operating Temp. Range	25°C ± 5°C
Float Charging Voltage	6.8 VDC/unit Average at 25oC
Max Charging Current Limit	60 A
Equalization and Cycle Service	7.3 (7.4 for equalization) VDC/unit Average at 25oC
Self Discharge	Giant Power batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
Terminal	Terminal F14/F22
Container Material	A.B.S UL94-HB, UL94-V0 Optional

Giant Power 6V 550AH AGM Deep Cycle Battery
Cells Per Unit	3
Voltage Per Unit	6
Nominal Capacity	550Ah@C100 to 1.75V per cell @25ºC
Dimension	Length: 295 ±2mm Width: 178 ±2mm Total Height (with Terminal): 425 ±2mm
Approx Weight	Approx 57.5 Kg (Tolerance ± 1.5%)
Max Discharge Current	4000A (5 Sec)
Internal Resistance	Approx 1.1mΩ
Operating Temp.Range	Discharge : -20 ~ 60^oC Charge : 0 ~ 50^oC Storage : -20 ~ 60^oC
Nominal Operating Temp. Range	25°C ± 5°C
Float Charging Voltage	6.8 VDC/unit Average at 25oC
Max Charging Current Limit	60 A
Equalization and Cycle Service	7.3 (7.4 for equalization) VDC/unit Average at 25oC
Self Discharge	Giant Power batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
Terminal	Terminal F14/F22
Container Material	A.B.S UL94-HB, UL94-V0 Optional

Giant Power 6V 550AH AGM Deep Cycle Battery

Cells Per Unit

Voltage Per Unit

Nominal Capacity

550Ah@C100 to 1.75V per cell @25ºC

Dimension

Length: 295 ±2mm
Width: 178 ±2mm
Total Height (with Terminal): 425 ±2mm

Approx Weight

Approx 57.5 Kg (Tolerance ± 1.5%)

Max Discharge Current

4000A (5 Sec)

Internal Resistance

Approx 1.1mΩ

Operating Temp.Range

Discharge : -20 ~ 60^oC
Charge : 0 ~ 50^oC
Storage : -20 ~ 60^oC

Nominal Operating Temp. Range

25°C ± 5°C

Float Charging Voltage

6.8 VDC/unit Average at 25oC

Max Charging Current Limit

60 A

Equalization and Cycle Service

7.3 (7.4 for equalization) VDC/unit Average at 25oC

Self Discharge

Giant Power batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.

Terminal

Terminal F14/F22

Container Material

A.B.S UL94-HB, UL94-V0 Optional
