ARDENT Portable Battery Box with Integrated 30A DC/DC Charger

NOW $419

At a glance

Ardent’s Battery Box instantly turns your Deep Cycle battery into a true portable power hub! SKU: A-BBOX-30ADC

NOW $419

Ardent Integrated 30AMP DC/DC & SOLAR Battery Box

The all-new Ardent 30A DC-DC Battery Box keeps your lithium battery charged. The all-new Ardent 30A charger incorporates a 30A MPPT solar controller allowing charge from solar panels or blankets. Simply drop your lithium battery into the box and connect only two wires from the box direct to your battery terminals. Get power anywhere and anytime! Stuck in a blackout! No problems! Charge and run all your important devices!! When the vehicle runs, the DC/DC charger will charge via the alternator; when the vehicle stops, the Ardent 30A DC/DC will continue charging via your solar panels/blankets. This Ardent 30AMP MPPT charger also features pulse charging algorithm designed to recover your discharged battery. And over-charge, short circuit, over-temperature, thermal load, solar input overload, input/output reverse polarity protection have been integrated to offer an extra layer of protection.

DC-DC Charging For Lithium Batteries

Regarding DC-DC Chargers and solar controllers, you must change these to LiFePO4-specific models, which can charge your Lithium batteries to an entire 100% State of Charge. The advantage of using a LiFePO4 charge profile is that it allows users to get the total capacity out of their lithium battery, as the DC-DC LiFePO4 setting will prolong the battery life. You need a DC-DC charger to effectively manage the power input in a lithium battery.

This DC-DC charger is not compatible with our range of 300W and 400W Solar Panels due to the input voltage.

**If you are charging from an alternator, you will need a DC-DC Charger that is designed to manage solar specific to lithium (LiFEPO4).

The DC-DC charger uses a 3-step process to charge the battery optimally:

Bulk: In this step, the DC-DC battery charger converts the current from the alternator and fills in the secondary battery almost to the maximum.
Absorption: Power levels off and stabilizes so the battery doesn’t ‘overcharge’ and damage cells.
Float: This occurs when the battery is fully charged with its optimal charge capacity reached.

100AH Lithium Deep Cycle Battery Online Designed for Off Road and Heavy Duty Applications

Perfect for use in caravans, marine, camping and home storage off grid applications. Solar, wind or battery charger compatible. Designed to handle the vibration when off road.

100AH Lithium Deep Cycle Battery Online Reliable 240V Power

Campers appreciate being able to charge multiple devices simultaneously while enjoying a peaceful camping experience.

100AH Lithium Deep Cycle Battery Online Portable Power Solutions

Ardent Battery Boxes are lightweight, when compared to many other options, and have built in carry straps, which make moving around the campsite easy.

100AH Lithium Deep Cycle Battery Online Quality 30AMP DC/DC Charger

Another important benefit of using a DC-DC battery charger is its ability to maximize the charge of the main battery.

ADD A 12V LITHIUM BATTERY TO MAKE THIS BOX FUNCTIONAL : Giant Power Australian-Made LIFEPO4 batteries can be charged with 240V chargers, lithium DC/DC or solar panels. include an Active Cell Balancer that increases system run-time.

Recessed Ports

Unlike most other battery boxes on the market, all ports are recessed into the body to reduce likelihood of damage and the internal cabling uses the heaviest-gauge wire and quality connectors.

Run Fridges and Compressors

12 Volt DC accessory socket with 20A circuit breaker, perfect to run the compressor or portable fridge.

Anderson Plug Input/Output

2 x 50A Anderson-style outlets that can be used as outputs or inputs 1 x 30AMP DC Input 1 x 30AMP DC Output (Max 25V)

USB Charging

2 X USB outlet to charge all of your smaller devices

Battery Charge Level

The battery’s charge status and voltage can be easily seen via the large digital display.

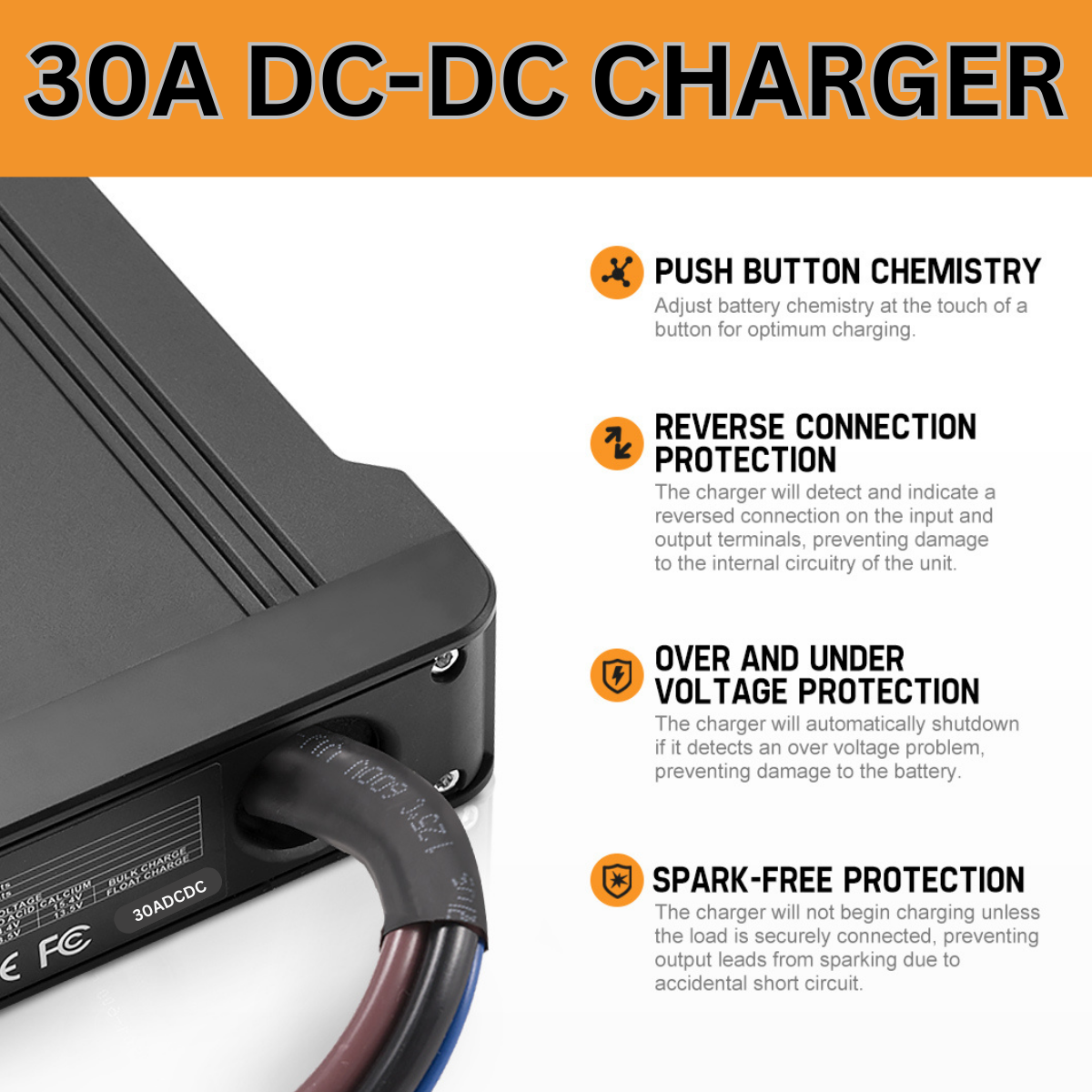

30A DC-DC Charger

Easy push button chemistry select: AGM/Gel,Calcium,Lion,Lead-Acid Batteries

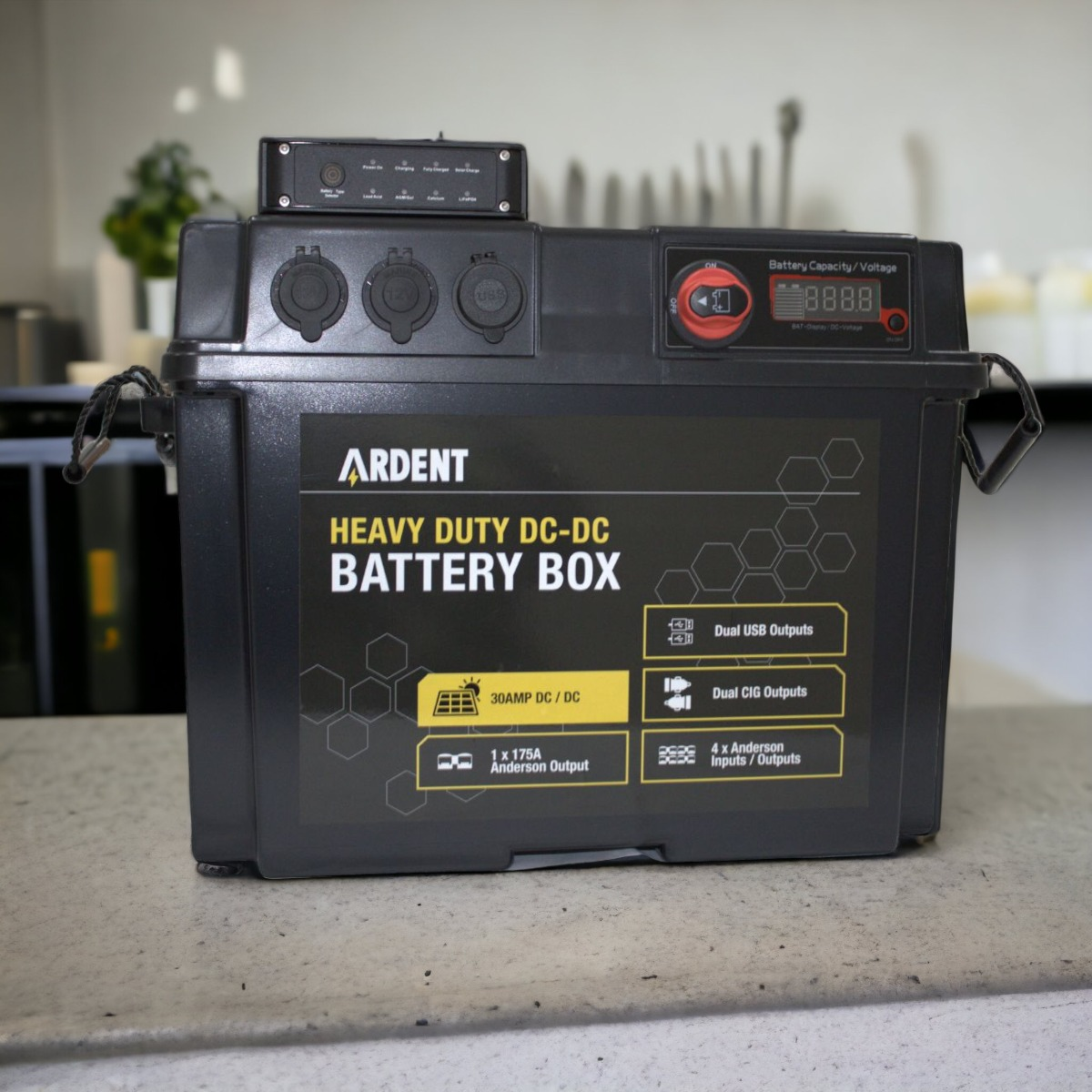

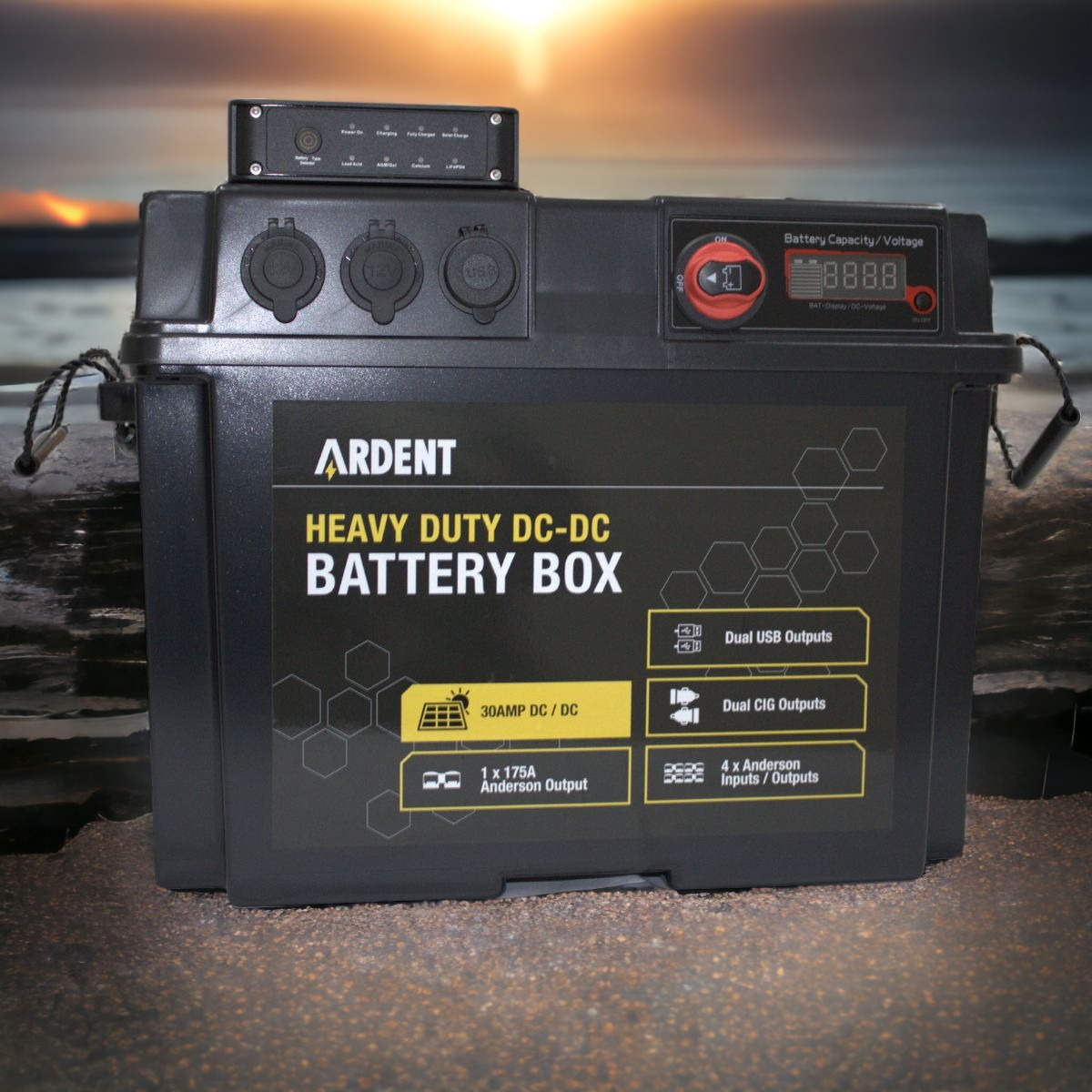

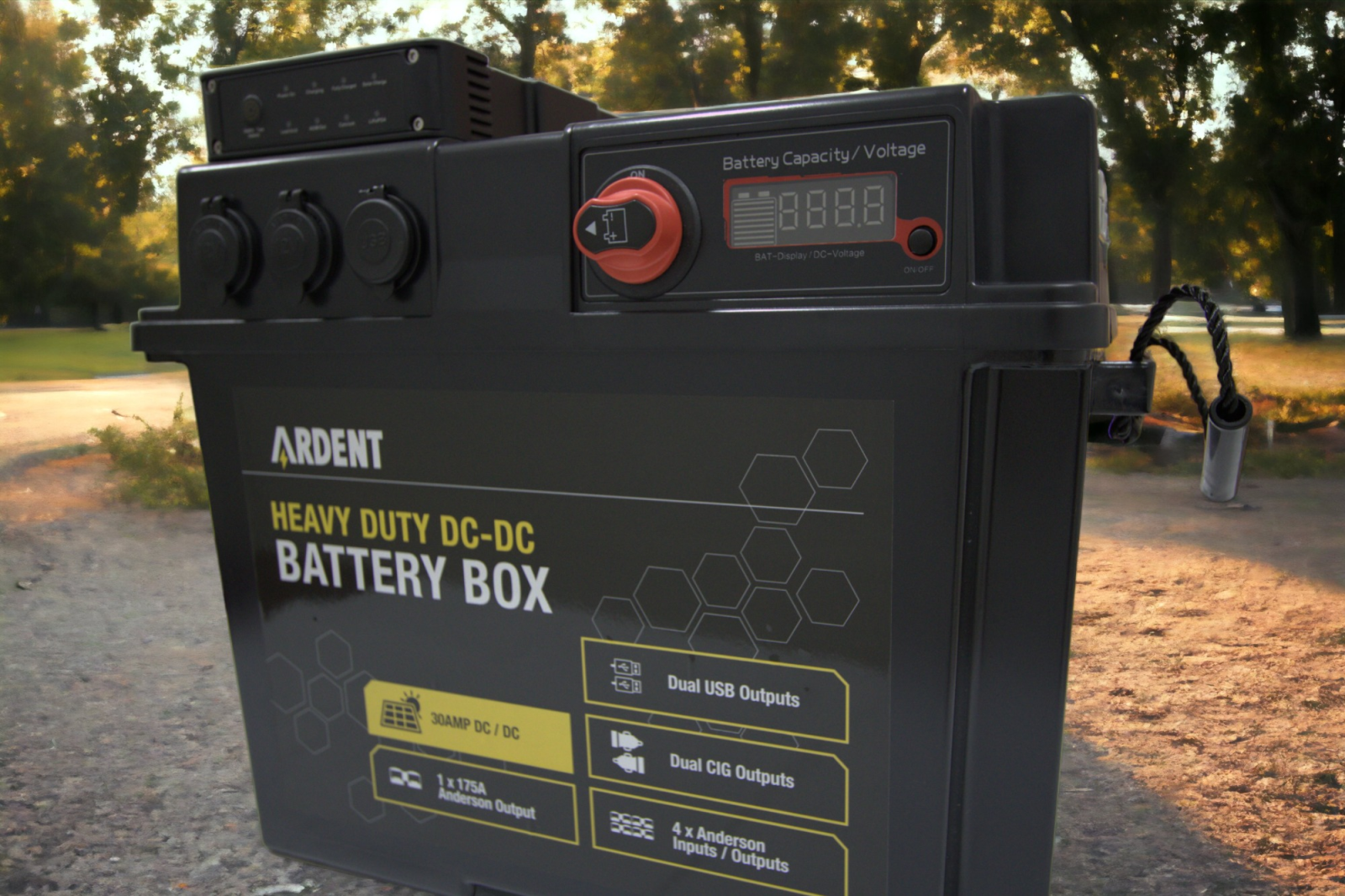

Ardent Heavy Duty Battery Box & 30A DC-DC Charger
Suitable Battery Types	Lithium, AGM, Calcium, Wet, Gel
Body Materials	ABS plastic (meets UL 94V-0 standard)
Charge method	via Anderson plug input
Port	1x Dual USB output 1 x 30AMP DC Input 1 x 30AMP DC Output (Max 25V) 2x Cigarette plug outputs 2x 50A Anderson plug inputs/outputs 1x 175A Anderson plug output\ 1 X 30AMP DC/DC Charger
Max Battery Size	330mm (L) x 190mm (W) x 230mm (H)
Max Battery Weight	35kg
Box Dimensions	455mm (L) x 240mm (W) x 330mm (H)

Compared with traditional DC to DC charger, this device, which is suitable for AGM, Gel, calcium, LiON, VRLA and flooded battery, is compatible with smart alternator, which is prevalent in modern vehicles, trailers and caravans, to adjust voltage cut off. In addition to pulling power from alternator to charge auxiliary battery, it also has a built-in MPPT regulator to maximize energy absorption, thus reducing the load on your engine.

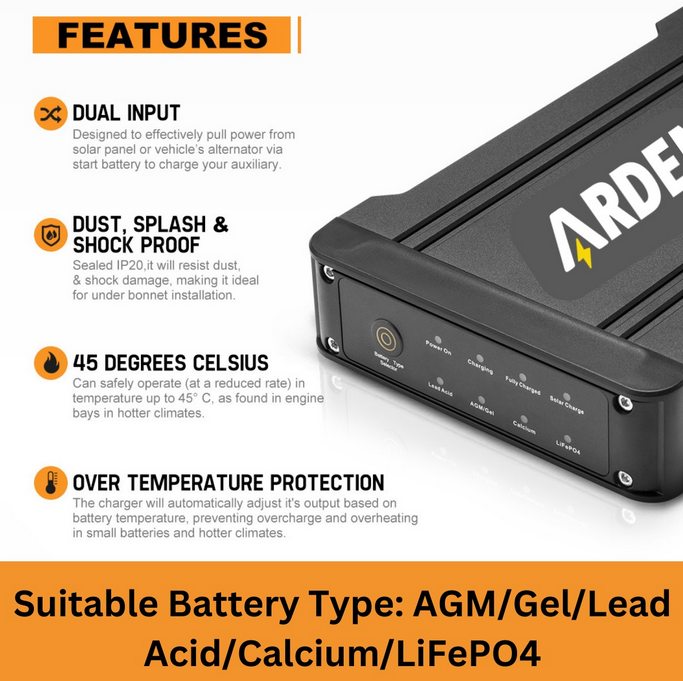

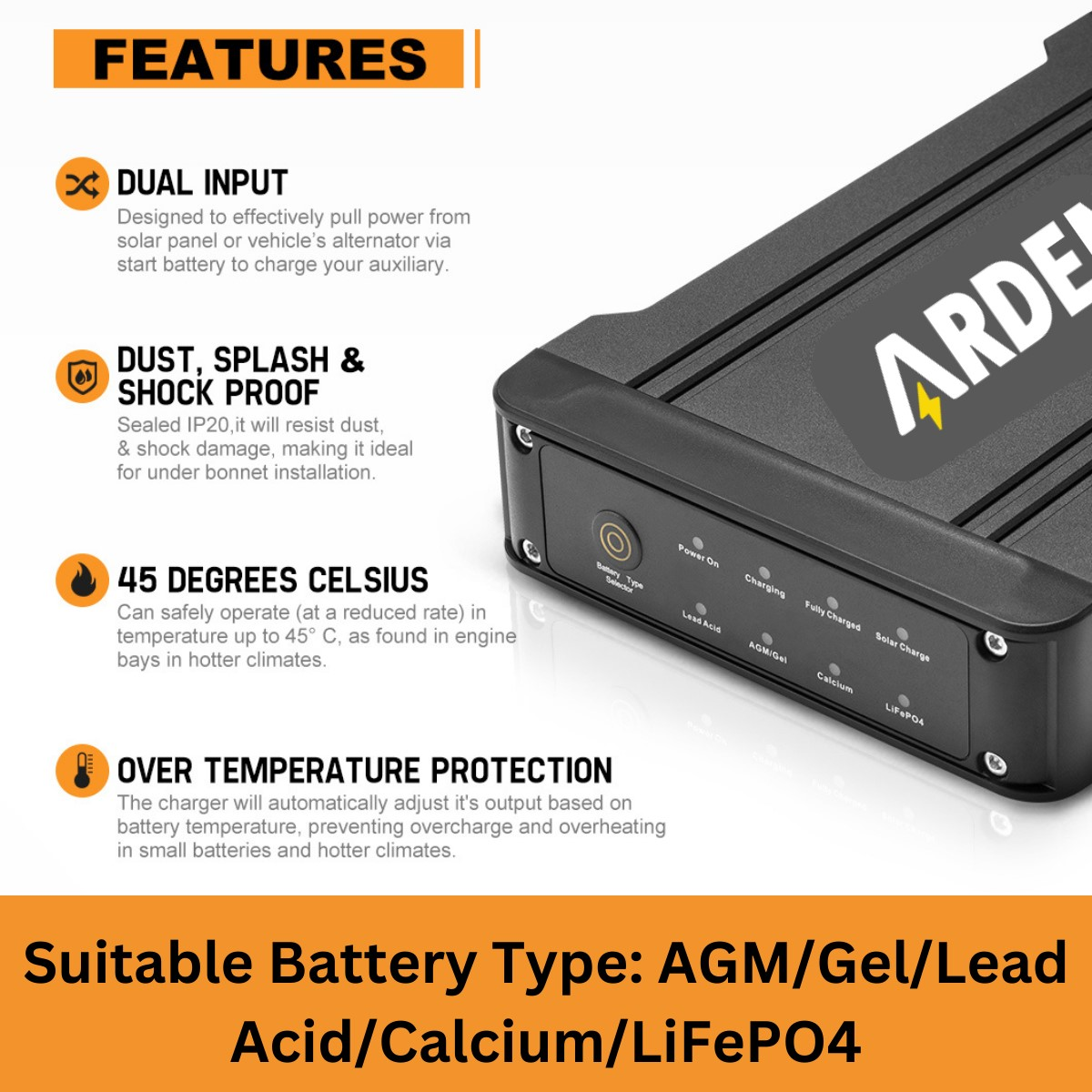

Dual Input: This Charger is designed to effectively pull power from solar panel or vehicle’s alternator to charge your auxiliary battery.
Smart Alternator Compatible: The ACC wire can be wired to the ignition to adjust voltage cut off, which is suitable for modern vehicle, trailers and caravans.
Pulse Charging Algorithm: This algorithm is designed to select the optimum charge mode and revive your discharged battery.
Multi-Stage Charging: This charger integrates bulk charge, absorption and constant voltage (float) to improve efficiency and prolong battery’s lifespan.
Multi Battery Types: Compatible with AGM, Gel, calcium, LiFePO4, VRLA and flooded lead acid battery.
Built-In MPPT Regulator: The regulator is designed to harvest up more energy from the solar panel, thus reducing the load on your engine.
Multiple Protection: It integrates over-charge, short circuit, over-temperature, thermal load, solar input overload, input/output reverse polarity protection.
Internal Temperature Monitoring: This mechanism can effectively protect the circuit board, thus prolong the lifespan of the charger.
Superior Versatility: This DC to DC charger is ideal for 4WDs, caravans, RVs, trucks, campers, trailers, campervans, commercial vehicles and boats.

2 year general warranty - 2 year warranty - repair of replacement warranty for construction or components

Description

Ardent Integrated 30AMP DC/DC & SOLAR Battery Box

DC-DC Charging For Lithium Batteries

This DC-DC charger is not compatible with our range of 300W and 400W Solar Panels due to the input voltage.

**If you are charging from an alternator, you will need a DC-DC Charger that is designed to manage solar specific to lithium (LiFEPO4).

The DC-DC charger uses a 3-step process to charge the battery optimally:

Bulk: In this step, the DC-DC battery charger converts the current from the alternator and fills in the secondary battery almost to the maximum.
Absorption: Power levels off and stabilizes so the battery doesn’t ‘overcharge’ and damage cells.
Float: This occurs when the battery is fully charged with its optimal charge capacity reached.
