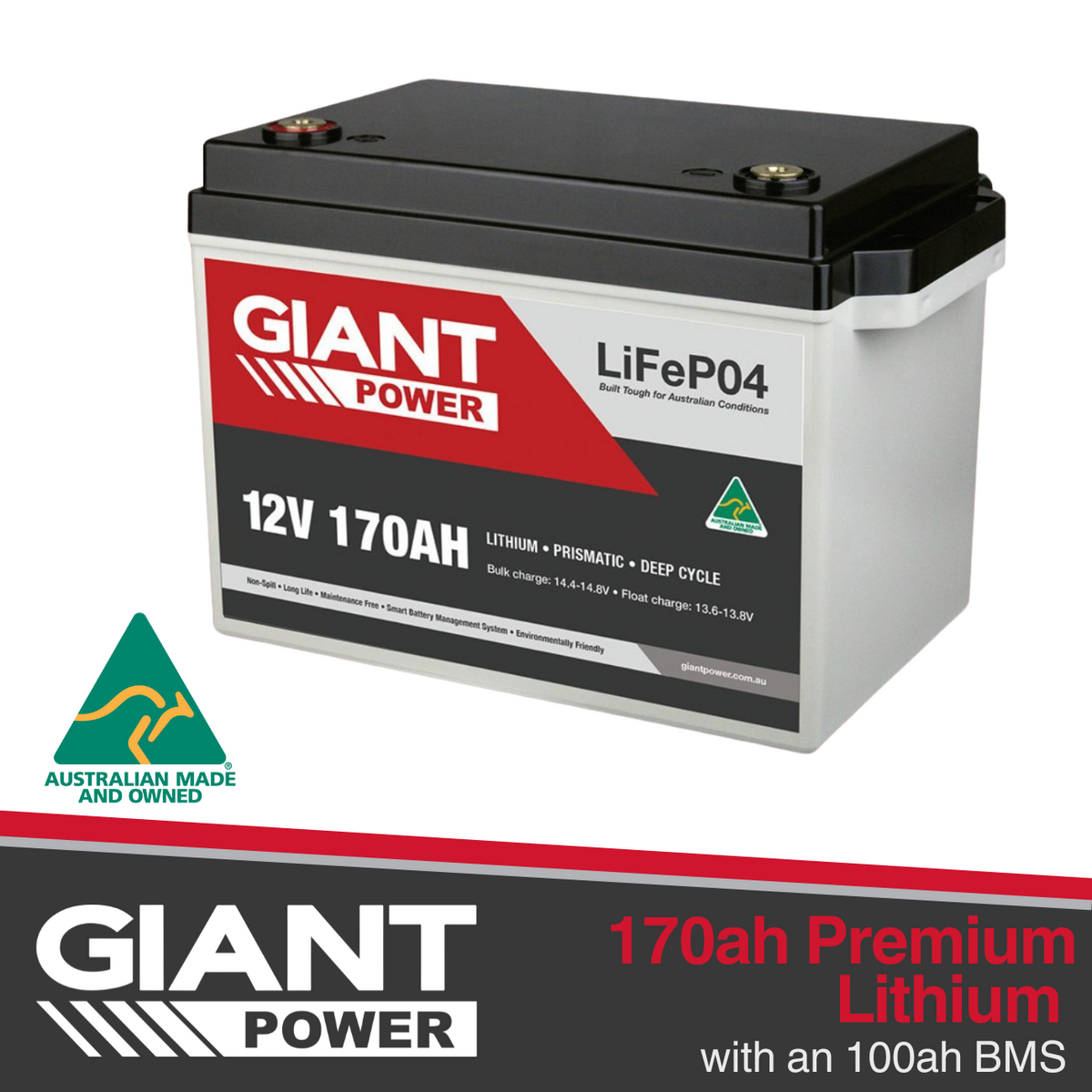

Giant Power 170Ah Lithium (LiFePO4)
Premium Deep Cycle Battery – 12V 100A BMS
The Giant Power 170Ah Lithium (LiFePO4) Deep Cycle Battery is designed for 12V power applications including camping, caravans, RVs, 4WDs, marine use, and off-grid solar systems.
This battery uses prismatic LiFePO4 cells and includes an integrated 100A Battery Management System (BMS) to manage charge and discharge, protect against overcurrent, and support safe operation. The unit is IEC62619 compliant and built for reliable performance in a range of environments.
A 170Ah (Amp-hour) battery measures total energy capacity, while amps measure the instantaneous current draw. Theoretically, a 170Ah battery provides 170 amps for 1 hour, or 17 amps for 10 hours.

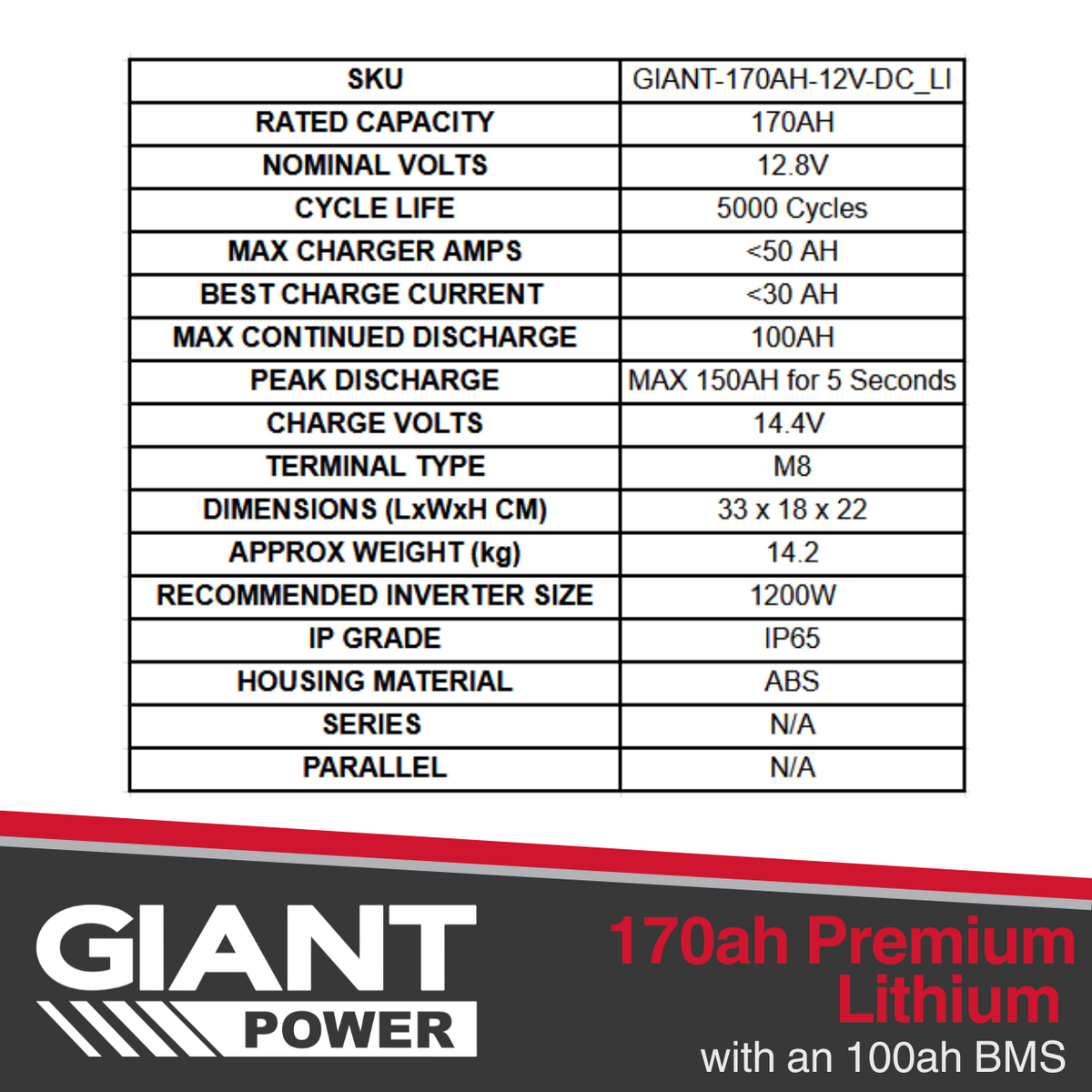

Key Specifications
-
Capacity: 170Ah
-
Nominal Voltage: 12V
-
Chemistry: LiFePO4 (Lithium Iron Phosphate)
-
Battery Management System: 100A (integrated BMS)
-

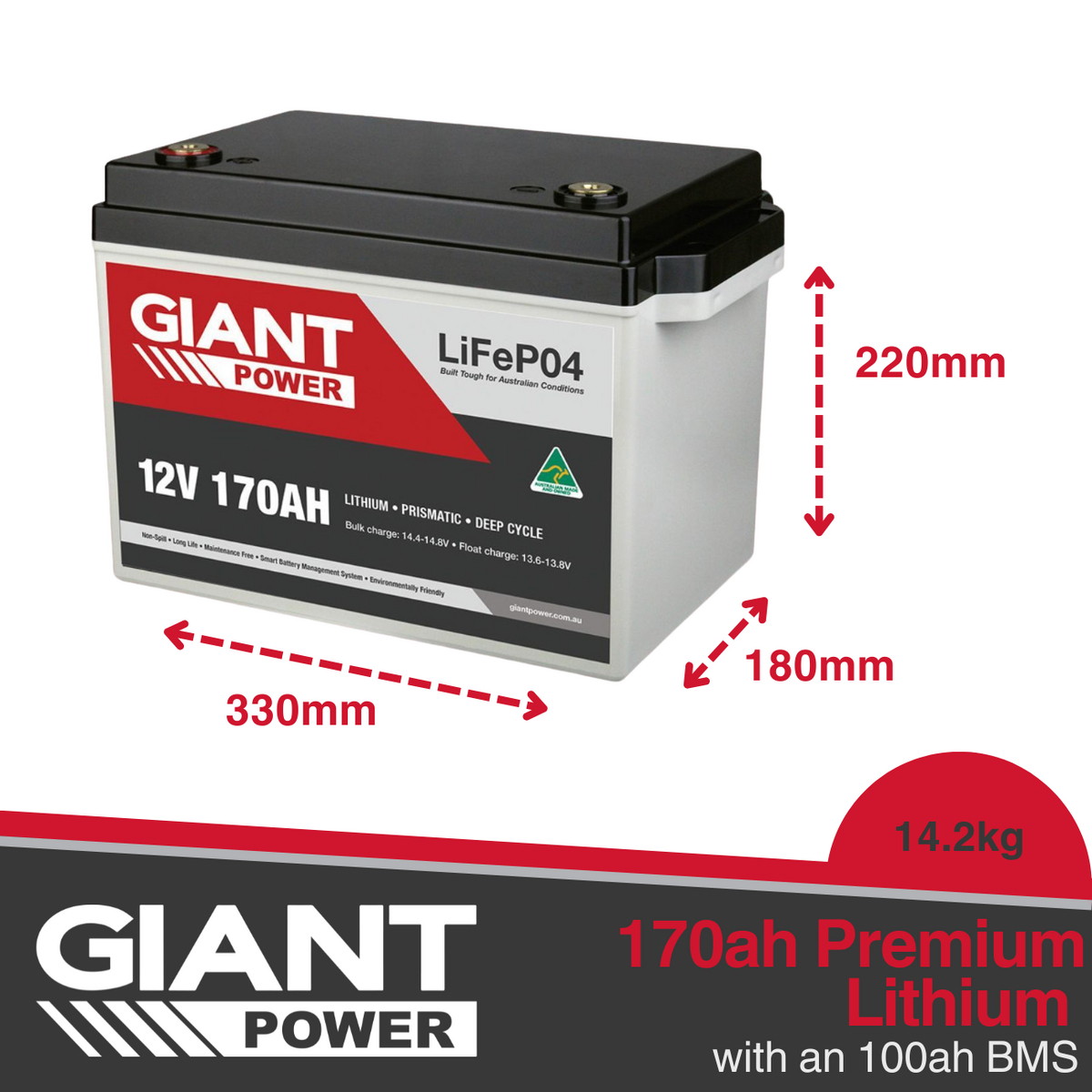

Dimensions: 330mm (L) x 180mm (W) x 220mm (H)
-
Weight: Approx. 14.2 kg
-
Terminals: M8 removable
-
IP Rating: IP65 (dust and water resistant)
-
Certification: IEC62619 compliant
Features
-
Suitable replacement for AGM deep cycle batteries
-
Lightweight compared to equivalent lead-acid batteries
-
Integrated BMS for protection and cell balancing
-
Maintenance-free operation
-
Low self-discharge rate (~2%)
-
Supports series and parallel configurations (with appropriate system setup)
Applications
Suitable for:
-
Camping and portable power systems
-
Caravans, campervans, and RVs
-
4WD and touring setups
-
Marine and boating use
-
Solar energy storage systems
-
Backup power applications
Charging Information
-
Compatible with lithium-specific chargers and charge profiles
-
AGM chargers may be used temporarily if desulfation mode is disabled
-
For alternator charging, a lithium-compatible DC-DC charger is recommended
-
Solar controllers should support LiFePO4 charging profiles
Important Notes
-
Recommended for use with inverters up to 1500W
-
Not suitable for engine cranking applications
-
Battery should be protected from water, heat, and contaminants
-
Improper installation or use may void warranty
Warranty
View suitable Chargers Below
