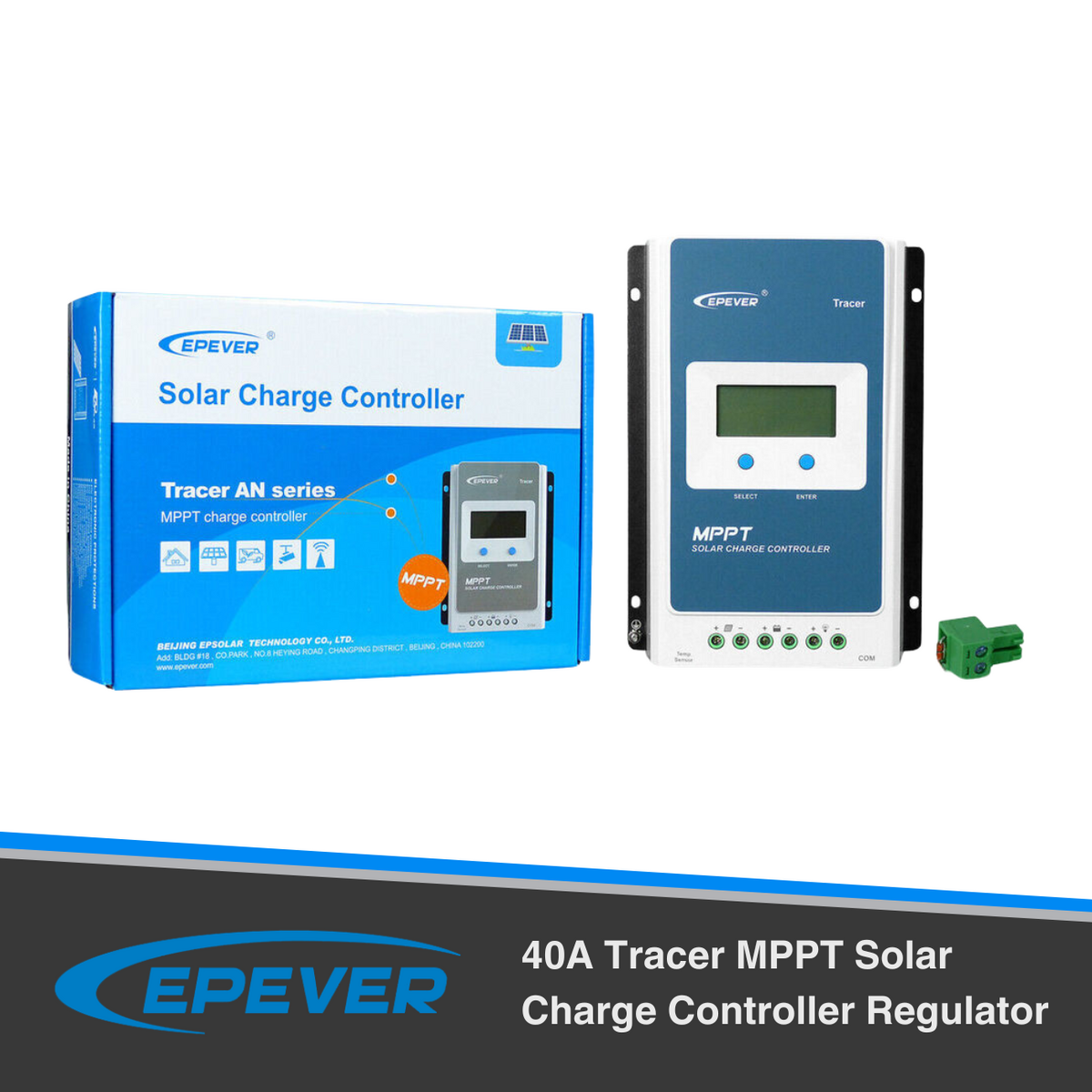

Tracer AN Series (40A) MPPT Charge Controller
Epever’s newly upgraded Tracer AN series with common negative earth is a high quality economically priced proper MPPT controller which features up to 99% tracing efficiency. The Tracer AN Series, MPPT charge controller with its 4-stage charging (Bulk, Absorption, Float and equalisation ), can substantially increase the life of your flooded, sealed, AGM, Gel and Lithium-ion batteries.
This MPPT controller has built-in protection against reverse polarity, over-discharging, over-charing, reverse current and overload along with protecting batteries from being overcharged by the solar array.
The exterior of the unit is composed of die-cast aluminium for safe heat dissipation and general protection from wear and tear.
Tracer-AN 40A series charge controllers adopt MPPT (Maximum Power Point Tracking) technology. In any situation, it can Track the Maximum Power Point (MPP) of the solar array and obtain the maximum solar energy rapidly and accurately. It can generate up to 30% more power compared with the PWM charge controller. This series can accept max.100V Voc and work with the solar panels. The multifunction LCD display the system status vividly.
Features:
- Advanced MPPT technology, with efficiency no less than 99.5%
- Ultra-fast tracking speed and guaranteed tracking efficiency
- Advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time
- Wide MPP operating voltage range
- High quality components, perfecting system performance, with maximum conversion efficiency of 98%
- Accurate recognition and tracking of multiple-peaks maximum power point
- International famous brands of ST and IR's components of high quality and low failure rate are used, which can ensure the product’s service life
- Charging power and current limitation function
- Compatible with lead-acid and lithium-ion batteries
- Battery temperature compensation function
- Real-time energy statistics function
- Overheating power reduction function
- Multiple load work modes
- The communication port adopts professional protection chip, which can provide 5VDC power supply, and has over-current and short-circuit protection.
- With RS-485 communication bus interface and Modbus communication protocol, it is available to meet various
- Communication requirements in different situations.
- Monitor and set the parameters via mobile phone APP or PC software
- Full-load operation without any drop in capacity within the range of working environment temperature
- Extensive electronic protection
Regulator
- Excellent thermal design and natural air cooling
- Full power output in ambient temperatures up to 45oC
- Temperature compensation function
- Suitable for Lithium battery type options
- CE and RoHS certificate
Electronic protections:
- PV reverse polarity protection
- PV short circuit protection
- PV over current alarm protection
- Battery overcharge protection
- Battery over discharge protection
- Battery reverse polarity protection
- Load short circuit protection
- Controller overheating protection
